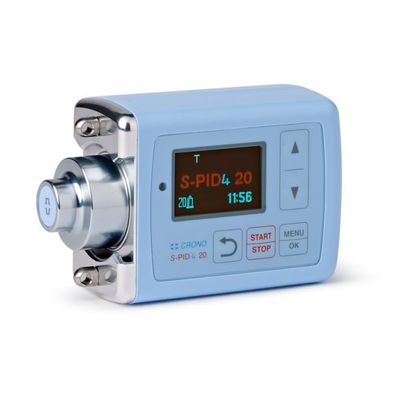

Cane - Model CRONO S-PID 4 20 -Portable Syringe Pumps
FromCanè S.p.A.
Pump dimensions : 76 x 49 x 29 mm. Pump weight : 115 g, including battery. Battery : Lithium CR 123A 3V (battery life approx. 80 infusions).
Réservoir : Dedicated, with 10 and 20 ml capacity and “Luer-Lock” universal safety fitting.
Most popular related searches
- T mode :
- Total infusion time programmable from 15 mins to 20 hrs (10 ml syringe) in the following way:
- from 15 min to 1 h with 5 min increments;
- from 1 to 20 h with 15 min increments.
- Total infusion time programmable from 30 mins to 20 hrs (20 ml syringe) in the following way:
- from 30 min to 1 h with 5 min increments;
- from 1 to 20 h with 15 min increments.
- F mode :
- Flow rate programmable from 1 ml/h to 40 ml/h in the following way:
- from 1 to 10 ml/h with 0,1 ml/h increments;
- from 10 to 40 ml/h with 1 ml/h increments.
- Flow rate accuracy : +/-2%.
- Maximum occlusion pressure : 8 bar
- Post-occlusion bolus : Up to 1,4 ml
- Electronic circuit : Managed by twin microcontrollers for improved safety
- Memory : All selected values are automatically stored in a memory which is retained even if the battery is removed from the device.
- Display : Colour graphical OLED display, 96x64 pixels.
- Motor : Coreless DC motor. The microcontroller controls the rotation speed using an infrared encoder.
- Settings lock : Two configurable levels.
- Safety circuits : They ensure that the device is correctly operational. In case of a fault they generate acoustic signals and messages shown on the display
- Ingress protection rating of the pump : IP 42
- Supplied standard equipment : Ambulatory pump with reservoir, infusion pump carry-case, elastic belt, collar strap, fabric case, 2 batteries, battery cover opening tool and user guide.
- Guarantee : Two years for manufacturing defects.
