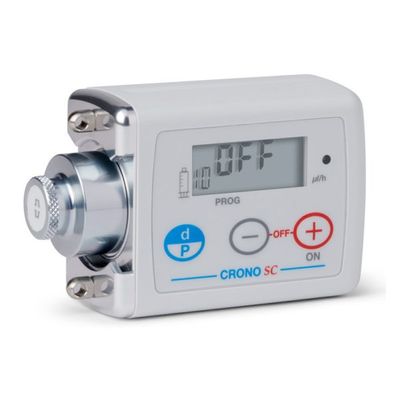

Cane - Model CRONO SC -Portable Pumps for Palliative Treatment
FromCanè S.p.A.
Pump dimensions : 76 x 49 x 29 mm (3.00 x 1.94 x 1.15 in). Pump dimensions (with protective wings) : 138 x 49 x 29 mm (5.43 x 1.94 x 1.15 in). Pump weight : 115 g (including battery). Weight (with protective wings) : 127 g (4.46 oz.), including battery.
Most popular related searches
- Battery : 3 Volt Lithium battery, mod. 123 A (battery life approximately 100 infusions).
- Single-use reservoirs : Special 10 and 20 ml reservoirs with “Luer-Lock” universal safety fitting.
- Administration doses : Selectable, from 1 ml to 20 ml in 1 ml increments.
- Priming function : Only available at the start of the infusion. The maximum volume that can be delivered is 1500 μl in 5 μl increments.
- Flow rates selectable : From 5 to 2000 μl/h in 1 μl/h increments:
- It is possible to disable this function by setting 0 μl/h
- Bolus dose : Selectable, from 10 μl to 2000 μl in 10 μl increments.
- It is possible to disable this function by setting 0 μl.
- Clinical bolus : Selectable, from 10 μl to 2000 μl in 10 μl increments.
- It is possible to disable this function by setting 0 μl.
- Minimum interval between bolus doses :
- Selectable, from 5 min to 24 hours in the following modes:
- from 5 minutes to 1 hour in 5 minute increments;
- from 1 hour to 24 hours in 15 minute increments.
- It is possible to disable this function by setting no,Lt.
- Bolus doses in one hour : From 0 to 12 bolus doses.
- The function may be disabled by setting no,Ln.
- Flow rate precision : +/-2%.
- Maximum occlusion pressure : 2,5 bar +/- 1,5 (PL1), 4 bar +/-2 (PL2), 5,5 bar +/- 2 (PL3).
- Display : Liquid crystal display (dimensions 1.1 x 2.8 cm).
- Motor : Coreless DC motor. The microcontroller controls the rotation speed using an infrared encoder.
- Safety circuits : They check that the device is functioning correctly, intervening in the event of any fault with acoustic signals and messages on the display.
- Anti free-flow system : To avoid a non controlled flow inside the delivery set due to the action of the force of gravity.
- Supplied standard equipment : Ambulatory infusion pump, infusion pump carry-case, elastic belt, collar strap, fabric case, 2 batteries, battery cover opening tool, 2 user manuals (doctor and patient).
- Guarantee : Two years for manufacturing defects.
