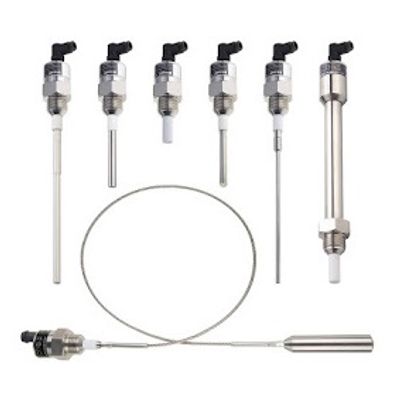

Dinel - Model DLS-27 -Capacitive Level Sensors

For limit level sensing of liquid and bulk-solid materials. Direct mounting into various containers, vessels, silos, tanks, filling inlets, reservoirs, etc. Outputs NPN, PNP, NAMUR (for explosive areas). Sensitivity and hysteresis fluently adjustable. Supply voltage 7 ... 36 V DC (NAMUR 8 ... 12 V DC). Material of housing and electrode from stainless steel. Process coupling - thread M27x2; M30x1.5; G3/4“ or Triclamp. LED state indication. Xi, XiT versions for usage in explosive areasor, or Xd version for usage in flamable dusts areas, or XiM, XiMT versions for mining environments with a risk of hazard by methane or coal dust.
