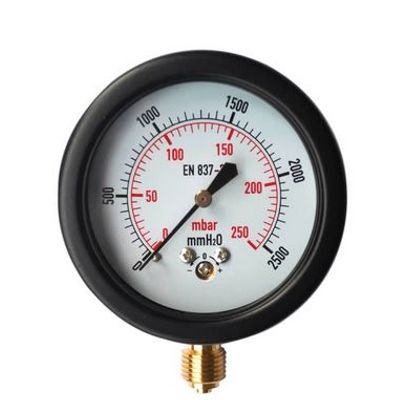

Ma Anshan Exact - Model 123 AL -Capsule Low Pressure Gauge
Low Pressure gauge,brass gauges are designed for use in low pressure applications with dry gasses that are compatible with copper alloy. Examples include: exhaust systems and blowers.
Most popular related searches
pressure gauge
compressed air system
compressed air
exhauster system
air compressor system
exhaust blower
blower
blower system
- Sensitive Diaphragm/Capsule mechanism
- Easy-access Zero reset screw on dial face
- Economy design for non-severe service
- Design ASME B40.100 Design
- Paymet terms: T/T, L/C,DP
- Port: shang hai or ning bo
- Model: 123AL Capsule Low Pressure Gauge Bottom Connection
- Applications: Usd for pneumatic systems,compressors,compressed air system;Suitable for fluid medium which does not clog connection port or corrode copper alloy
- Size: (mm): Ø63, 100, 150
- Scale ranges: ± 25mbar minimum pressure
- Accuracy class: 1.6% for Ø(63), 1.6% or 1% for Ø(100-150)
- Connection: Brass,1/4" Ø(63) 1/2" Ø(100, 150)
- Thread: NPT,BSP,M14X1.5,M20X1.5 and so on
- Wetted parts: Copper alloy
- Case material: Black steel case and bayonet bezel
- Window: Glass / Plastic
- IP class: IP 43
- Pointer/Dial: Aluminum finished
- Operating Temperature: -40 F to 140 F (- 40 C to 60 C)
- Media Temperature: 60 C Maximum
