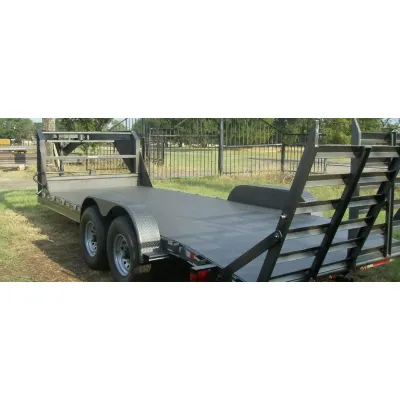

Custom Built Gooseneck - Car Hauler and Utility Trailer
Custom Built Gooseneck Trailers specializes in crafting high-quality, tailored car haulers and utility trailers designed for both personal and business use. The company offers a range of custom options, including a robust 3/16 inch diamond plate steel flooring, 25,000 lb capacity gooseneck ball couplers, and solid I-Beam uprights to ensure durability and strength. Trailers are equipped with advanced safety features such as electric breakaway systems, LED lights, and reflective tape to comply with D.O.T regulations. Customers can select from various sizes, axles with E-Z Lube options, 3-1/2 foot stand-up ramps, and lifetime warranty on workmanship. A range of colors and additional customizations are available, ensuring that each trailer meets the specific needs and preferences of the customer. Located in Sulphur Springs, Texas, the company is committed to providing bespoke solutions and exceptional customer support.
Customize a new car hauler or utility trailer with Custom Built Gooseneck Trailers in Sulphur Springs, Texas. We believe in building high-quality custom trailers for our customers and our car haulers are no exception. Whether you run a business and need custom specifications or want to do-it-yourself, we will walk you through the process and build to your specific needs. Contact us today to start building your new custom built car hauler or utility trailer.
Solid Steel Flooring
Build your custom car hauler or utility trailer with 3/16″ diamond plate steel flooring.
25,000 Lb Double Coupler
Coupler with a capacity of holding 25,000 lbs.
Stand Up Ramps
Build your custom car hauler with 3-1/2′ stand up ramps.
D.O.T Legal
Custom car haulers are built with safety chains, electric breakaway, mud flaps and reflective tape.
- Size: Length: 20 feet, Width: 83 inches
- Axles: 7000 lb straight electric brake dexter axles, 8-6.50 hub-drums, 12×2 inch DXQ electric brakes, E – Z Lube option, 95.00 inch hub face, 80.00 inch spring center
- I-Beam Uprights: 12 x 14 I-Beam uprights
- Stake Pockets: 5 state pocket in front of fender & behind fender
- Dove: 30 inch dove with 4 inch break in dove
- Ramps: 3-1/2 foot stand up ramps
- Coupler: Gooseneck ball coupler, GVW 25,000 lb capacity, 4.5 inch outer tube, cast cone head with internal bar latch, 3/4 inch load pin, 3/4 inch set screws, 8 inch adjustment
- Jacks: 10,000 lb ram, front pull spring loaded drop leg jack
- Flooring: 3/16 inch diamond plate steel floor
- Winch Plate: 12 x 14 winch plate
- Tires: 235 x 80 x R16 – 10 ply
- Lights: LED lights
- D.O.T Legal: Equipped with: safety chains, electric breakaway, mud flaps & reflective tape
- Warranty: Lifetime warranty on workmanship of the trailer
- Other Options: Color of your choice, receiver tube
