Sylab - Model CSBox Tube - Carbon and ...

Sylab - Model CSBox Tube -Carbon and Sulfur Analyzer

FromSylab Pvt. Ltd.

SHARE

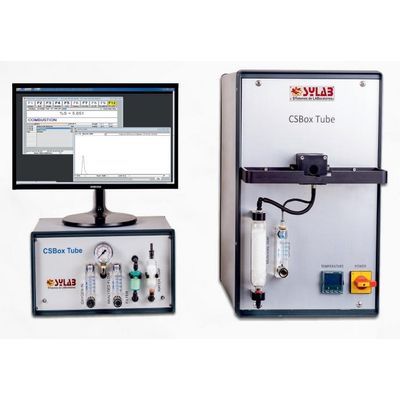

CSBox Tube CS Analyzer is used to determine Carbon and Sulfur in Organic samples like Coal, Coke, fuel oils, soil, Waste samples, Biomass and other Organic samples. The analyzer provides simultaneous Carbon and Sulfur determination with minimal sample preparation. It consists of two independent IR cells with a wide measuring range of Carbon and Sulfur. The measuring range of each IR cell is modified to the user’s specific requirement to ensure optimum measurement conditions for each application. CSBox Tube is supplied with a comprehensive software package which includes statistical reports, diagnostics features and other functions.

Most popular related searches

high temperature horizontal tube furnace

analytical balance

sample combustion

elemental analyzer

sulfur analysis

Highlights of the CSBox Tube CS Analyzer

High temperature horizontal resistance tube furnace for wide range of sample combustions

Temperature ramp rates are programmable for faster heating. Concentric ceramic furnace tube with ceramic lance directing the oxygen to the sample to ensure complete combustion and rapid analysis times. Better gas flow control to increase the furnace life and reliability of combustion.

High throughput. Fast analysis times

The CSBox Tube CS guarantees long lifetime of the individual components. High throughput, fast analysis times and an easy-to-use software help you reduce costs and increase productivity

Measurement across a broad concentration range

Customized IR cells provide a wide, dynamic measuring range.
The “Stainless steel” IR path provides increased cell lifetime for analysis of halogen or acid-containing samples.
The analyzer uses static emitters and static detectors for a better signal-to-noise ratio.
The detector is pyroelectric, 100% static and non-dispersive

Unique user-friendly design where the furnace is isolated from the Infrared analyzer to improve the life of the NDIR analyzer
High-efficiency horizontal resistance tube furnace
Programmable furnace temperature and ramp rate
Customized IR cells provide a wide, dynamic measuring range
Fast and simultaneous analysis of Carbon and Sulfur
Wide measuring range from 50 ppm to 100%

CS software provides a complete solution for measurement of Carbon and Sulfur.
It allows the user to have complete access to analysis control like method setup, reports, diagnostics, data analysis, graphs and other functions in a highly organized manner.
It allows easy method setup with automatic sample weight transfer from analytical balance and leak check features
Capable to capture weights from all reputed analytical balances
Software allows to set up different methods and user profiles with password protection facility.
Instrument can be provided with external balance, printer and LIMS with customizable features.
