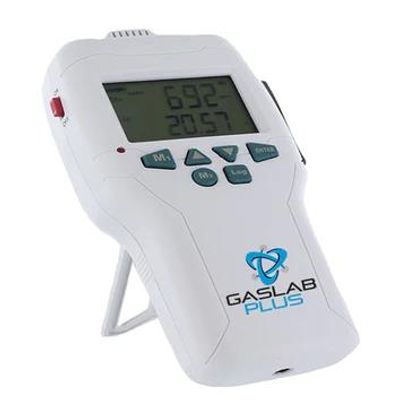

GasLab Plus - Model CM-504 -Carbon Dioxide (CO2) and Carbon Monoxide (CO) Handheld Gas Detector

ABOUT CO2 STORAGE SAFETY CODES

This device will NOT meet requirements for CO2 safety monitoring which requires a Fixed/Wall mounted, hard-wired alarm per the NBIC, NFPA, or IFC regulations. Refer to our CO2 Safety Products page for devices that meet your needs

Call us at (877) 678-4259 toll-free or email us to speak with our technical sales team about purchasing the correct device.

• NDIR/EC technology to measure CO2 and CO concentrations
• CO2, CO, PM2.5, PM10, Temp, R/H%, and Baro
• Large LCD display for easy readability
• Audible Alarm
• Data Logging with 16GB SD Card
• LCD Backlight for easy readability by dark
• Li-ion rechargeable batteries included

• Food and Beverage
• Brewing
• Agriculture
• Scientific
• Medical
• Safety, and many others

• Measures: CO2, CO, PM2.5, PM10, temperature, %R/H, and Baro
• Sensing method: NDIR and EC
• CO2 Measurement range: 0~9999 ppm
• CO Measurement range: 0~1,000 ppm
• PM2.5,10 Measurement range: 999 ug/m3
• Temperature: 0~50°C,±1?
• CO2 Accuracy: ± 50ppm, ± 5% of reading (0~5,000 ppm)
• CO Accuracy: ±5%~±10%
• PM2.5,10 Accuracy: ±15% or ±15 μg/m³ (whichever is greater)
• Power Supply: 3 Rechargeable Batteries - Li-ion 18650 3.7V
• Battery Life: tested to 24+ hours
• Life Span: NDIR: up to 15 years, EC: 1 year
• Dimensions: 204.5 x 91.7 x 49.6 mm (8.1 x 3.6 x 2 inch)
• Weight: 305g (without batteries)

Includes

• CO2, CO, PM2.5, PM10 Gas Detector
• Manual
• USB Charging Cable
• SD Card (16g), Data Logging Capability
• Three (3) Li-ion rechargeable batteries

Warranty

• 1 year - See CO2Meter Terms and Conditions

This device features data logs that are stored to a micro SD Card. The GasLab® Software is not compatible with this device.
