eLichens

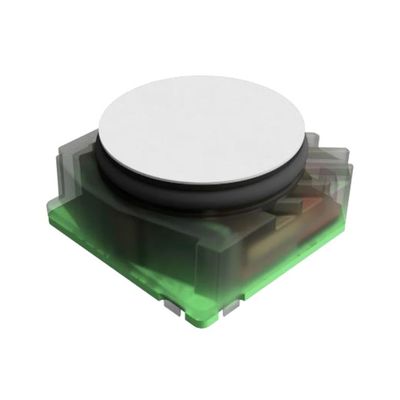

Cranberry - Model CRA-30-243 -Carbon Dioxide (CO2) Gas Sensors Ultra-Low power, 1-Series Sensor
FromeLichens
Cranberry sensors are cutting-edge NDIR (Non-dispersive Infrared), dual-channel, gas sensors integrated in the new 1-series form factor. They are based on eLichens’ patented technology including a proprietary IR micro-source, patented optical design and advanced signal processing algorithms. It provides Cranberry sensors the lowest power consumption and the highest stability on the market in a compact formfactor. These are key differentiators allowing the development of innovative battery-powered safety products.
Most popular related searches
gas sensor
CO2 gas sensor
dual channel gas
NDIR hydrocarbons
gas leak sensor
CO2 sensor
NDIR gas sensor
leak sensor
safety system
safety product
- New 1-series ultra-compact formfactor
- 0 – 50,000 ppm measurement range
- No False alarms due to environmental transients
- Fail Safe
- Fast response time, T90 < 30s
- Ultra-low power consumption: < 2mW
- Very low peak current: < 4mA
- Simple digital communication UART interface
- 10+ year lifetime
- High accuracy
- Temperature compensated
- Zone 0, ATEX & IECEx certified
- Performance certified industrial/commercial health and safety devices
- Wireless fixed monitors, > 10-year battery life
- Portable & wearable devices, > 2-year battery life
