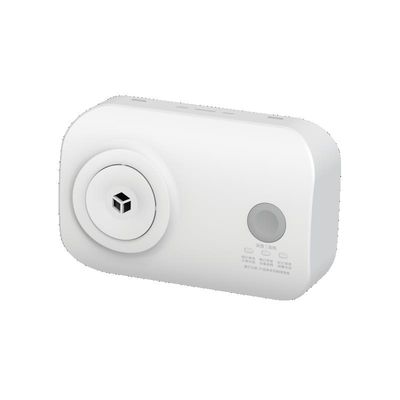

Cubic - Model JM-AM4302R Battery powered CO Alarm with Relay -Carbon Monoxide Alarm
Cubic JM-AM4302R is a battery powered CO alarm with relay developed based on electrochemical technology, especially designed for CO leakage detection in indoor environments. JM-AM4302R embedded with Cubic self-developed electrochemical CO sensor, offers high stability, selectivity, and repeatability for CO leakage detection while minimizing interference from gases such as acetic acid and ethanol. It also provides high detection accuracy across the full temperature range and measurement span, ensuring reliable and durable performance in diverse indoor conditions. Cubic JM-AM4302R responds rapidly to elevated CO levels, providing early warnings through audible and visual alarms with a sound output of up to 85 dB. It will be triggered automatically when dangerous CO concentrations are detected, following graded thresholds of 50 ppm, 100 ppm, and 300 ppm, in compliance with safety standards.Most popular related searches
carbon monoxide alarm
electrochemical CO sensor
carbon monoxide sensor
carbon monoxide detection
indoor environment
electrochemical sensor
temperature monitoring
electrochemistry
safety gas detection
gas detection
- Electrochemical technology
- Integrated with self-developed electrochemical CO sensor
- High selectivity, resistant to acetic acid and ethanol interference
- High detection accuracy over the full temperature and measurement range
- Fast response to elevated CO concentrations
- Audible and visual alarm with sound output up to 85 dB under graded alarm thresholds
- Relay signal output available for external control
- Self-checking and silence button functions
- Battery-operated with up to 10 years lifetime
- Compact design for easy installation
- Compliant with UL2034, EN50291, and RoHS
- OEM/ODM turnkey solutions available
- Detection Gas: Carbon Monoxide
- Working Principle: Electrochemical
- Detection Range: 0-500ppm
- Detection Accuracy: ± 5ppm or ± 5% @23°C±2°C, take whichever is greater
- Alarm Threshold: 50PPM Between 60 to 90 minutes; 100PPM Between 10 to 40 minutes; 300PPM Less than 3 minutes
- Alarm Reset: Automatic reset when the leaked gas is cleared / Press the button to silence the sound
- Working Conditions: -10°C ~ +50°C; 0%RH - 95%RH non condensing
- Working Air Pressure: 86kPa - 106kPa
- Applicable Place: Indoor
- Power Supply: Battery powered
- Product Weight: Around 600g
- Product Size: 130*58*80mm
