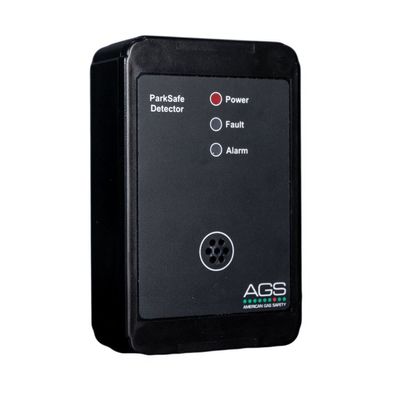

AGS ParkSafe - Carbon Monoxide Gas Detector
12-24V power supply & detector chain data signal; Up to 16 gas detector can be connected in a chain; Modbus RTU compatibility; Test button ensures all configured systems, alarms, indications and other external devices operate as intended; Detector chain ID switches to allow the contractor to arrange each detector per zone; Chain termination resistor switch used at the end of a chain loop; End of Life and Fault notifications when the detector reaches its expected operational lifecycle (CO - 5 years); Sensor UL listed to UL2075.
Most popular related searches
optical carbon monoxide gas detector
gas detection system
ventilation control
condensate testing
gas detection
gas detection control system
carbon monoxide detector
gas detection control
gas detection controller
controlled ventilation
- Compatibility: ParkSafe Range
- Visual Indicators: Power LED / Fault LED / Alarm LED
- Modbus: RTU
- Detector Chain Length: ±500 yards max
- Initial Stabilisation Time: 60 Seconds Approximately
- Power Input Voltage: 12-24V / 7-30VDC
- Consumption: 15mA Max (24V)
- Accuracy @ 25°C / 77°F: ± 5%
- Fuses: N/A
- Operating Temp: 14-122°F 30-85%RH Non-Condensing
- Test Conditions: 77° ± 10°F
- Audible Alarm Buzzer (dB): None
