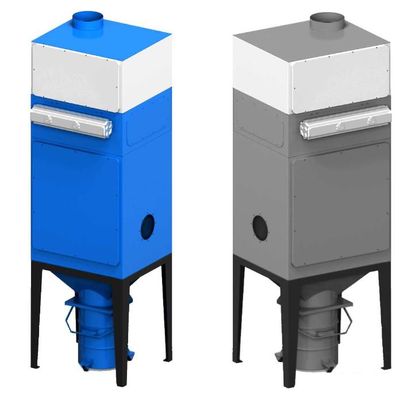

Vzduchotechnik - Model POC 40-60 JET -Cartridge Air Filtration System
Industrial air filtering units POC 40 and POC 60 are designed for industrial heavy around-the-clock use with very simple and economical maintains. Industrial Air Filtering units POC JET are intended to filter both metallic and non-metallic dust particles and aerosols, also welding operations, surface grinding and metal cutting, dust generating processes, toner dust, mist and vapor collection, industrial grinding operations, fiberglass sanding & deburring, CNC milling, EDM milling, powder mixing and much more.
POC 40-60 JET consists of three basic components:
- Stand (with discharge hopper and container for collected dust)
- Filtration chamber with cartridges filters and automatic reverse pulse cleaning system
- Fan chamber
The equipment consists of stand, rectangular discharge hopper and container for collected dust. The container is fixed to the discharge hopper by the means of 4 quick couplings. In terms of easy handling the discharge hopper is equipped with handles and
with castor wheels.
The filtration chamber in POC 40/60 JET includes 4/6 pieces of filtration cartridges. The air flushing chamber shall assure pulse cleaning of the filtration chambers. In the sidewalls of the chamber the containers of the filter cleaning system are installed and
equipped with pulse valves. The valves are operated by electric pulses based on defined pressure drop or based on time to be set on the control unit of the extractor. The air for filter cleaning is guided to the jets which alternately flush the individual filtration
cartridges.
In the fan chamber the radial middle-pressure extracting fan is installed. As a fan drive an asynchronous, single speed, flanged electric motor is used. The fan determines the technical parameters of the extractor. The fan chamber is lined with some soundinsulation mass and in its front side a removable cover is installed to enable easy inspection of the fan. If the extractor is running, the cover of the fan chamber must be closed!!!
