HENNLICH ENGINEERING

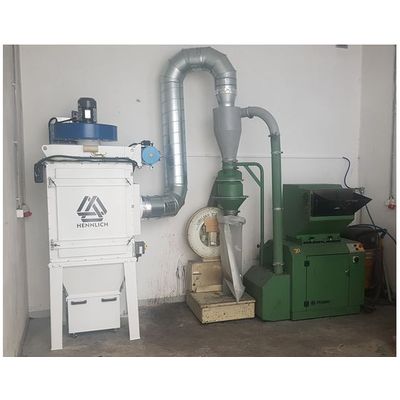

Hennlich - Model P0600/9/N -Cartridge Filter
Box-shaped dust collector for the local dedusting - big-bags filling, welding and cutting machines etc.
Most popular related searches
filter cartridge
cartridge filter
dust collector cartridge
cartridge dust collector
dust collector
dust cartridge collector
pressure regulator
air intake
compressed air
filter element
Operation qualities
- air volume: 1000 m3/h
- filtration area: 17,5 m2
- fan: 1,5 kW, 3 x 400 V AC, 50 Hz
- temperature resistance: -20 °C/+80 °C
- weight: 284 kg
Design
- carbon steel construction
- filter element: 9 x filter cartridge, made of polyester in basic design
- air tank with JET-PULS filter cartridges recovery and timer
- compressed air inlet: internal thread G ½“
- pulse and safety valves, pressure regulator
- pressure switch to indicate the filter cartridges are plugged
- support frame with the dust container
