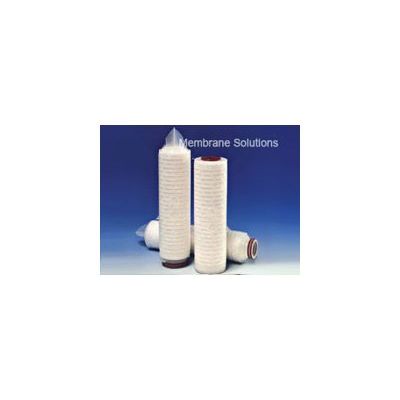

MS - Model PP -Cartridge Filter

Polypropylene Pleated cartridges use the very latest gradient density microfiber media technology to provide a combination of excellent micro ratings, high flow rates and high contaminant holding capacities.Aspecial combination of polypropylene media with variation in the fiber diameter has created a gradient density matrix, rangingfrom open on the outside to finer on the inside. Thereby providing a filter with in filter, which considerably increases contamination heilding capacity & throughputs. All components used in the manufacture are biologically safe, chemically inert and meet GMP and other international quality requirements. Polypropylene offers an extremely broad chemical compatibility making it suitable for many applications.

• All Polypropylene Construction
• Absolute & Nominal Efficiency
• 0.1 to 40 Micron Ratings
• Gradient Density Micron Fiber Media
• High Surface Area more than 0.5 m2
• Robust Outer Cage
• Biologically Safe
• Non Fibber Migration
• Thermally Welded Construction
• FDAApproved Filters
• End connections to fit all standard housings

Sizes

• 5",10",20-, 30-, 40" Long

Micron Rating

• 0.2-5.0 Micron

Outer Diameter

• 70 mm

Inner Diameter

• 28 mm

Maximum Differential Pressure(25°C)

• Positive direction: 0.42Mpa
• Reverse direction: 0.21Mpa

Applicable PH value

• 3-7.5

Working Temperatures Differential Pressure

• s80BC(Differential Pressure:0.21 Mpa)
• Code 3 S (222 0 Ring Design/flat)
