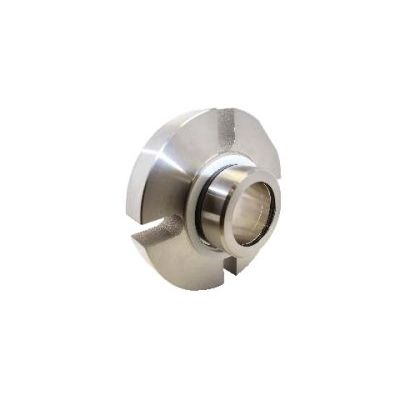

Cartridge Seal
One of the industry`s most aggressively priced stationary cartridges. Easy Cartridge installation. Stationary multiple spring design. Springs isolated from product. Rugged face design. Identical seal face shapes make repairs easy & economical.
Most popular related searches
Features & Benefits:
- Hydraulicaly balanced design
- Handles pressure reversals & vacuum
- Flush connection standard
- Vent & Drain connections available upon request
- Big Bore gland alternative
- Interchangeable parts with D2 dual cartridges
- Userfriendly setting clips
- Confined gland gaskets
Operating Limits:
- Pressure: Upto 250 PSI/17Bar
- Temperature: -40°C to 235°C*
Standard Materials of Construction:
- Faces:
- Carbon / Silicon Carbide Silicon Carbide/ Silicon Carbide
- (Note: Tungsten Carbide & Antimony Carbon also available)
- Elastomers:
- Buna, Viton*, PTFE, Neoprene, EPR, Kalrez*, AFLAS*, Chemraz*
- Metallurgy:
- 304,316, Monel, Alloy 20, Hast B+C*
