Kartar - Model K-801 - Cast Iron Ball ...

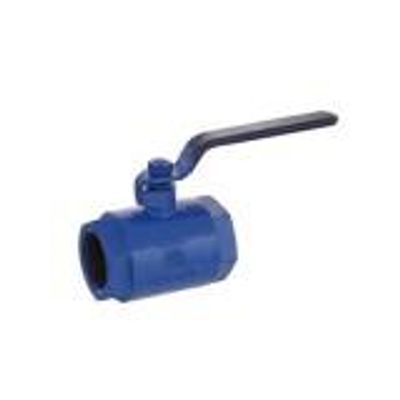

Kartar - Model K-801 -Cast Iron Ball Valve (Screwed)

FromKartar Valves Private Limited

SHARE

Plumbing (Hot & Cold Water), Mining Industry, Construction Industry, Water & Effluent Treatment Plants, Fire Fighting, Heating & Air Conditioning, Gas Supplies, Petroleum & Chemical Industry, Sugar Industry, Solvent Plants, Distribution of Oils, Boilers, Hydraulic Machines and for numerous other applications.

Most popular related searches

plant fire fighting

effluent treatment plant

industrial water treatment plant

industrial wastewater treatment plant

industrial water

industrial water industry

effluent treatment

air conditioning

water treatment plant

1/2″ (15mm) to 4″ (100mm) in Screwed type 2pc & 3pc design
Threads as per BSPT / NPT or any other standard can be provided
Can be installed upto 200 degrees centigrade temperature & 35 bar pressure
Indigenously manufactured stainless steel mirror finished balls with 100% accuracy
Blowout proof stem
Gland packing can be replaced under pressure
Design reference IS:9890 & ANSI B16.1
Mounting flange for actuator as per ISO:5211 can also be provided
Available in Cast Iron, Ductile, Cast Steel, Stainless Steel & Bronze
Available in Full Bore & Reduced Bore

Body : 22 Bar (Hydrostatically); 10 Bar (Air)
Seat : 16 Bar (Hydrostatically); 7 Bar (Air)
1 Bar = 0.1 MPa = 1.019 Kg/cm² = 14.50 PSI
Note : All threads are BSPT/IS:554
Note : All threads are BSPT/IS:554
Dimensions for Reduced Bore On Request
