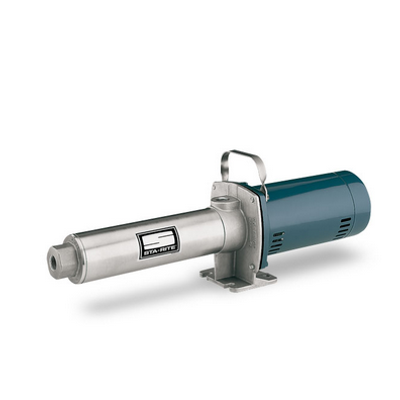

Pentair Sta-Rite - Model HP Series -Cast Iron High-Pressure Booster Pumps
Some of the most durable booster pumps available. The SignaSeal floating impeller design minimizes thrust loads allowing for continuous operation without damage to motor bearings, mechanical seal, or pump hydraulic components.
Most popular related searches
booster pump
pressure booster pump
mechanical seal pump
water supply
high-pressure pump
water booster pumping
water booster pump
pump component
air contaminant
water pump
- Proven SignaSeal staging system utilizes a ceramic wear surface that dominates with 1st-in-class performance.
- Superior sand-handling and thrust management staging system
- Precision-molded acetal impellers for perfect balance. Ultra-smooth for highest performance and efficiency
- Precision-molded diffusers offer superior performance with high resistance to corrosion and abrasion
- Precision lapped and highly polished carbon-ceramic mechanical shaft seal with stainless steel parts guarantees continuous water lubrication
- Superior motor winding insulation materials protect against excessive moisture and contaminants assuring prolonged motor life
- Precision rotor is die-cast under high pressures for uniform performance and greater efficiency
- All electrical components are protected from dirt, dust, and insects by a dustproof canopy which the ventilating air cannot contaminate
- Limited 1-year warranty
- PERFORMANCE SERIES: 7 thru 30 GPM Series available
- HORSEPOWER: Available in 1/2 thru 3 HP
- VOLTAGE: Available in 115v / 230v or 208v-230v/460v, 60 Hz, 1-phase
- NUMBER OF STAGES: 6 to 16 (model dependent)
- INLET SIZE: 3/4" to 1-1/2" NPT (model dependent)
- OUTLET SIZE: 3/4" to 1-1/2" NPT (model dependent)
- MAXIMUM INLET PRESSURE: 80 PSI
- MAXIMUM WORKING PRESSURE: 315 PSI
- MAXIMUM SUCTION LIFT: 15 ft
- MAXIMUM WATER TEMPERATURE: Prolonged use with liquids above 140° F is not recommended
- DISCHARGE MATERIAL: Cast Iron
- MOTOR ADAPTER & BASE: Cast Iron
- SHELL: 304 Stainless Steel
- IMPELLER: Acetal
- DIFFUSER: Polycarbonate
- SHAFT: 304 Stainless Steel
- O-RINGS: Buna-N
- MECHANICAL SEAL: Carbon/ceramic, Buna-N
