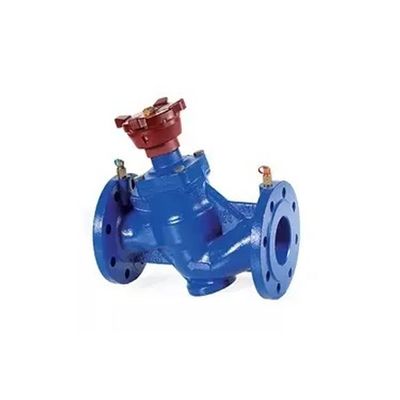

DOWAY OEM - Model DW-BA02 -Cast Iron Static Balancing Valve with Flanged Connection
Cast Iron Static balancing valve with flanged connection Used for balancing flow in heating, cooling and domestic hot water systems to optimize comfort and energy consumption.
Most popular related searches
balancing valve
hot water system
water mixing
ball valve
domestic water system
EN standard
domestic water
cooling water system
water optimization
cooling water
- Body Material: Cast Iron EN GJL250
- Pressure Rating: PN16
- Connect Ion Type: Flanged
- Flange Standard: EN 1092-2
- Face to face Standard: EN 558, series 1
- Bonnet Connection: Bolted
- Execution: Straight
- Connection Type: Flanged
- Operation: Hand wheel
- Actuation: Multi-turn
- Temperature range -10°C to +140°C
- MEDIA
- Hot water. Glycol-water mix (max 50% glycol).
- BUILDING STANDARDS
- DIN
- Working Pressure : 1.6Mpa
- Tested Pressure : l.OMpa By Gas
- Working Medium : Water, gas
- Working Temperature : -20°C<T<120°C
