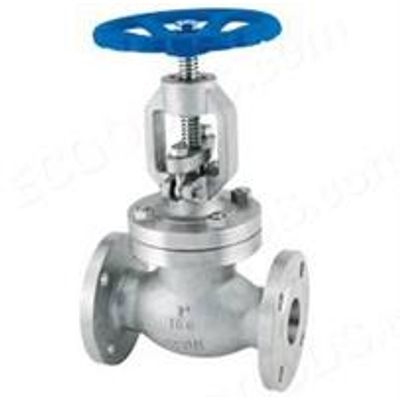

Onero - Model ONR 14 CSGB 10 -Cast Steel Flange Pressure Seal Globe Valve
China Pressure Seal Globe Valve: Cast Steel WCB, LCB, LCC, body material, BS 1873, ASME B16.34 standard, rising stem, flange end connection.
Most popular related searches
pressure seal globe valve
seal globe valve
globe valve
pressure seal
electric actuator
pneumatic actuator
flanged globe valve
- Design and manufacture standards: BS 1873, ASME B16.34
- Face to face standards: ASME B16.10, DIN 3202
- Test standards: API 598, BS 6755, ISO 5208
- Flanges end: ASME B16.5
- Butt-welding end: ASME B16.25
- Size: NPS 2"-24"
- Rating: Class150-2500
- Material: WCB, LCB, LCC, WC6, WC9, CF8, CF8M, CF3, CF3M, 4A, 5A
- Body pattern: Straight, Y type, Angle type
- Bolted bonnet (B. B)
- Disc type: Plug, Flat, Needle, Regulating
- Rising stem
- Operation: Handwheel, Gear, Electrical actuator, Pneumatic actuator
