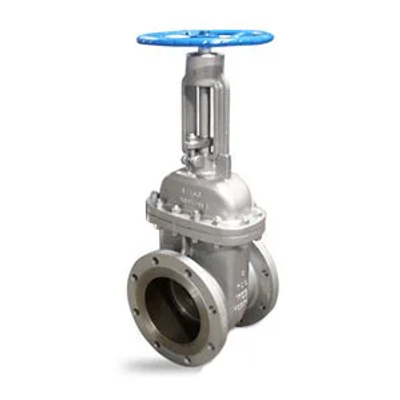

Oilong - Model API 600 -Cast Steel Gate Valve

• Metal-to-Metal Seating: Solid/flexible wedge options ensure zero leakage under extreme thermal cycling.
• Full-Bore Design: Minimizes pressure drop for crude oil, steam, or chemical transfer.
• Field-Serviceable: Top-entry maintenance allows in-line seat replacement without pipeline removal.
• Fire-Safe & Fugitive Emission Compliance: API 607/ISO 15848-certified stem seals and graphite packing.
• Optional Ports: By-pass, drain, or sealant injection for enhanced process control.
• Design standard: API 600
• Face to face: ASME B16.10
• Flange end: ASME B16.5/ASME B16.47
• BW end: ASME B16.25
• Wall thickness: API 600/ASME B16.34
• Inspection and test: API 598
• Pressure and temperature rating: ASME B16.34
• Product range: NPS 2″~NPS 64″,CL150~CL2500
• Material: WCB､LCB､WCC､WC6､WC9､CF8､CF8M､CF3､CF3M､A890 4A etc.

Full-Port Design:
Eliminates flow turbulence and energy loss, ideal for oil, gas, and water transmission pipelines.
Wedge gates (flexible, solid, or split) compensate for thermal expansion and seat wear.

Robust Sealing Performance:
Parallel or tapered sealing faces (metal-to-metal or resilient seated) for leak-proof operation up to ASME Class 2500.
Bi-directional sealing capability for versatile installation.

Industrial Durability:
Bodies in cast steel (WCB/WCC), stainless steel (CF8M/CF8), or alloy steel (WC6/WC9).
Compliant with API 600/603 standards for refinery, petrochemical, and power generation applications.

Common Applications:

• Oil & Gas: Crude oil trunk lines, wellhead isolation.
• Water Treatment: Mainline shutoff in distribution networks.
• Steam Systems: Boiler isolation, turbine bypass control.
