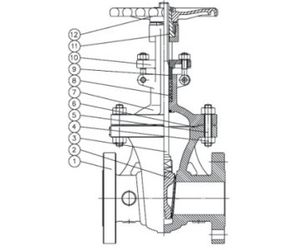

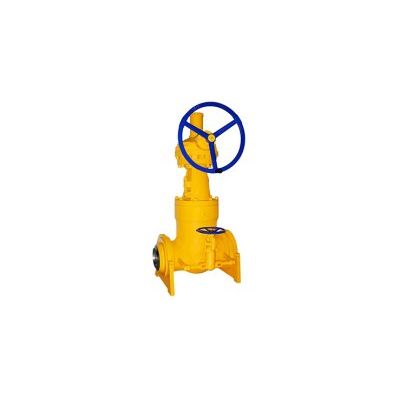

Xinhai - Model GV DIN CS 01 -Cast Steel Gate Valves
Cast Steel Gate Valves: DIN EN 12516-1, BS EN 12516.1, BS EN ISO 10434, EN1984, (non-) Rising Stem, Bolted Bonnet, Flanged Ends, DN 25 - DN 1200, PN 10 - PN 160, or as customer required.
Most popular related searches
- ValveType: DIN Gate Valve.
- Valve Size: DN 25-DN 1200.
- Pressure Rating: PN 10-PN 160.
Standards:
- Design & Manufacture: DIN EN 12516-1, BS EN 12516.1, BS EN ISO 10434, EN1984
- Face to Face Dimension: DIN EN558.1, BS EN 558-1, EN12982
- Flange Ends Dimension: BS EN 1092-1, DIN EN1092.1
- BW End Dimension: EN12627
- Test & Inspection: BS EN 12266, DIN N12266.1
