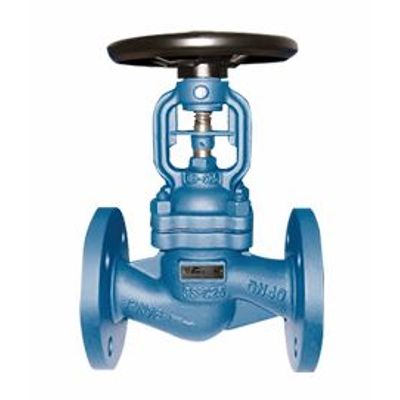

Ekoval - Model PN40 -EKO4100 -Cast Steel Globe Valve
Pressure Ratings: PN10,16,25,40. Design Standard: BS EN 13789. Face to Face Length: EN 558-1 F1. Valve Test: EN 12266-1. Valve Marking: EN 19. Flange Standard: EN 1092-2 (ISO 7005-2). Product Group: Globe Valve. Medium: Water, Gas, Oil, Air.
Most popular related searches
globe valve
avoid water hammer
valve testing
flow control
flow control valve
water hammer
EN standard
control valve
gaskets
epoxy coating
- Valve design according to BS EN 13789
- Flange Connection According to EN 1092-2 (ISO 7005-2)
- Face to Face dimansions According to EN 558-1 F1 / ISO 5752
- Valve Test According to EN12266-1
- Valve Marking EN19
- Oblique Body Structure
- Metal-Metal Application
- Rising Stem
- Suitable for High Temperatures (Also Steam)
- Avoids Water Hammer
- Suitable for Flow Control
- Anti-Leaking Stem
- Non-Ascending Shaft
- Vacuum Service
- Working Pressure PN40
- Available for Cold and hot Water Applications, Oil, Steam, Gas and Air
- Body: GS-C25 Cast Steel
- Seat: SAE 420
- Disc: GS-C25 Cast Steel
- Pin: Stainless Steel
- Gasket: Graphite
- Packing: Graphite
- Compression Nut: GS-C25 Cast Steel
- Bonnet: GS-C25 Cast Steel
- Brass Nut: MS58 Brass
- Stem: SS304 (13%Cr)
- Handwheel: GS-C25 Cast Steel
- Nut: DIN 934
- Washer: DIN 127
- Bolt: DIN 933
- Set Screw: DIN 914
- Inner and outer surface of the valve is powder epoxy (250-350 Microns) coated
- Can be supplied with Rising stem and Non Rising Stem options
- Bellow seal Optional
- PN16 Cast Iron (Refer to EKO4000)
