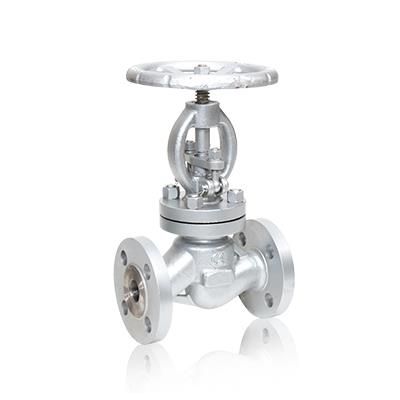

Robmet - Model PN 25 -Cast Steel Globe Valve

Working Temperature:

• -29°C...+425°C

Design Features:

• flanged or butt welded straight body
• rising stem with outside screw
• flat disc and seat

Sealing Surfaces:

• raised face flanges (RF)
• butt weld ends (BW)
• available with gear or electric actuator

Execution:

• basic design according to DIN3356
• face to face according to EN 558   I I series
• DIN3202 part I line Fl for raised face flanges (RF)
• DIN3202 part 2 SI for butt weld ends (BW)
• flanges according to DIN2544
• butt weld ends according to DIN3239
• testing according to DIN3230

On Request:

• threaded plug
