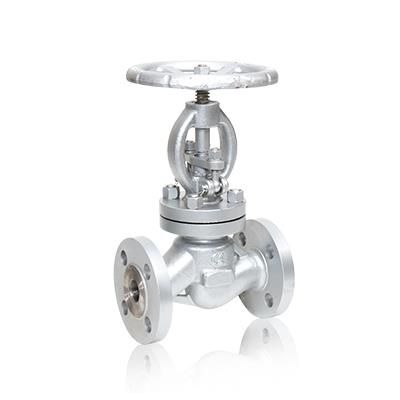

Robmet - Model PN 64 -Cast Steel Globe Valve

Working Temperature:

• -29°C...+425°C

Design Features:

• flanged or butt welded straight body
• rising stem with outside screw
• flat disc and seat

Sealing Surfaces:

• raised face flanges (RF)
• butt weld ends (BW)
• available with gear or electric actuator

Execution:

• basic design according to DIN 3356
• face to face according to EN 558   12 series
• DIN3202 part I line F2 for raised face flanges (RF)
• DIN3202 part 2 S3 for butt weld ends (BW)
• flanges according to DIN2546
• /butt weld ends according to DIN3239
• testing according to DIN3230

On Request:

• threaded plug
