FALCO - Model 100 -Catalytic Oxidizer
The FALCO 100 with dilution blower and variable frequency drive is the ideal solution for industrial vapor treatment. Process vapors are captured and efficiently destroyed by catalytic oxidation. Startup and operation are fully automatic. Temperature controllers accurately regulate inlet concentrations by adjusting dilution blower speed. Speed is increased during high mass flow of hydrocarbon and slows during low mass flow, or at standby to save energy. Automatic shutdown results if temperatures exceed limits.
The FALCO 100 has an efficient shell and tube heat exchanger. A bypass valve automatically increases heat recovery during low concentration operation and standby, and reduces heat recovery to accommodate high concentrations.

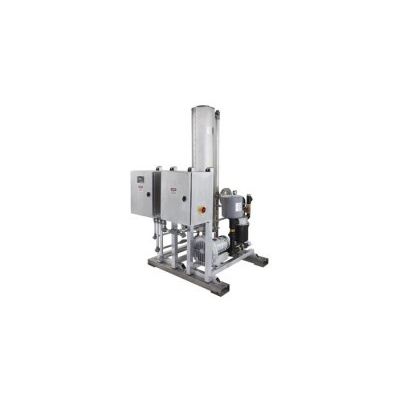

Components are mounted on frames joined by forklift beams. One frame supports the blower, VFD, and accessories. The second frame supports the FALCO 100. This low profile system weighs only 560 lbs and is 46” wide, 60” long, and 88” tall. This standardized package is easily installed and operated and can be integrated into a wide range of process vapor streams.
Packaged system includes the following:
- FALCO 100 Catalytic oxidizer
- 2 hp, three phase, explosion proof, inverter duty, regenerative blower
- Schneider Electric variable frequency drive in ventilated NEMA 4X enclosure
- Solberg inline process air and dilution filters
- Stainless steel vacuum and pressure gauges
- Stainless steel mounting rails with forklift pockets
- Mounting frames, factory piping and wiring between FALCO, Blower, and VFD
- Factory Mutual approval for use in Class 1, Division 2, Group D Hazardous Locations
Capacity 40-120 scfm (dilution air + process flow)
Maximum input loading 70 lb/day petroleum hydrocarbons @ 120 scfm
Destruction Efficiency Up to 99.5%
Catalyst operation range (standard) 330-620ºC (626-1148ºF)
Catalyst Stainless steel monolith. Alumina wash coat and platinum and palladium catalyst. Alternate catalysts are also available
Heat exchanger 304 Stainless steel shell and tube, 70% thermal efficiency @ 60 scfm
Heater (Electric) 7.3 kW, solid state switching (SCR power control) with high limit
Construction 304 Stainless steel and aluminum
Power requirements Heater: 30.5 amp @ 240 VAC single phase, Blower: 13.3 amp @ 240 VAC single phase (3 phase VFD output), Controls: 120 VAC, 3 amp, 60 Hz, Optional: 120 VAC, 3 amp, 50 Hz
