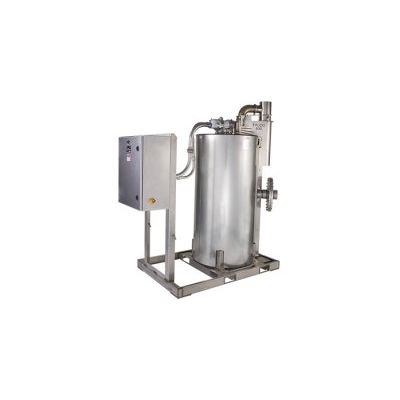

FALCO - Model 600 -Catalytic Oxidizer
The FALCO 600 electric catalytic oxidizer treats air streams contaminated with volatile organic compounds. The catalyst provides VOC destruction efficiencies up to 99.5%. Operation, including startup, is fully automatic. Controllers accurately regulate input loading and temperatures. The controls adjust a FALCO Vapor Control Valve (VCV) to maintain safe maximum input concentrations. Automatic shutdown results if temperatures exceed limits.
A spiral plate heat exchanger provides efficient heat recovery and a bypass valve allows for adjustment of heat recovery. Low heat recovery enables operation at high vapor concentration. High heat recovery minimizes energy use during operation at low concentration. At 785 ppmv (gasoline) and 600 scfm, sufficient heat is recovered to preheat the inflow without supplementary electric energy.
The FALCO 600 has a massive catalyst volume for its rated capacity, providing longer life and poison resistance than monolith type catalysts. The heat exchanger, heaters, and catalyst are integrated into an amazingly compact system which is easily installed and operated.
- CAPACITY 300-700 scfm
- MAXIMUM INPUT LOADING 430 lb/day petroleum hydrocarbons @ 700 scfm
- VAPOR CONTROL FALCO Vapor Control Valve (VCV)
- DESTRUCTION EFFICIENCY Up to 99.5%
- CATALYST TEMPERATURE RANGE 330-620ºC (626-1148ºF)
- CATALYST Packed bed 4.9 cubic feet. Platinum and Palladium on 1/8” ceramic beads is standard. Other catalysts available
- HEAT EXCHANGER 304 stainless steel heat exchanger and vessel. Aluminum heat guarding. Stainless steel frame
- HEATER (Electric) 36 kW, Solid state switching (SCR power control) with high limit
- CONSTRUCTION 304 stainless steel heat exchanger and vessel. Aluminum heat guarding. Stainless steel frame
- WEIGHT 1,400 lb. with flame arrestor
- DIMENSIONS 87" high (excluding 5` stack) X 78" long X 40" wide. Fits in the back of a pick up truck.
- POWER REQUIREMENTS Heater 3Ø:
- 75 amp @ 208 VAC (27 kW) or 86.7 amp @ 240 VAC (36 kW)
- Optional:
- 43 amps @ 480 VAC (36 kW)
- Optional Canada:
- 80 amps @ 240 VAC (33 kW)
- 40 amps @ 480 VAC (33 kW)
- Controls: 120 VAC, 60 Hz
- Optional: 120 VAC, 50 Hz
- APPROVALS Factory Mutual Approved for use in Class 1, Div 2, Group D, T2C Hazardous locations extending up to 30” above the ground.
