CATHTIP Flex-Drill - Semi-Automated Hole Drilling Machine
Flex-Drill by CATHTIP is the most flexible, cost-effective option for hole forming in catheter prototypes and early development applications.
Most popular related searches
drilling equipment
drill bit
drilling bit
pressure regulator
cleanroom
cleanroom software
workstation
core drilling
laboratory cleaning
air regulations

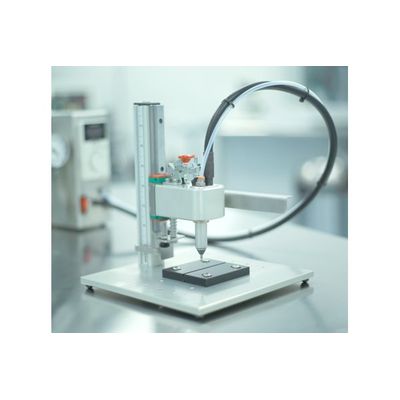

The Flex-Drill is handheld or mounted, and operated by a foot pedal.
Operators can quickly and easily try new hole diameters or patterns in a variety of different tubing materials.
Enjoy smooth core evacuation and a clean workstation with the same superior Flow Thru™ drill bit technology found in all CATHTIP’s hole forming machines.
Flexible Development Platform for Quick Prototyping
- Mountable in drill press with motion platform
- Quick removal from stand with toggle clamp
- Hold like a pen to place holes where desired
- Fine tune depth stop
- Reference ruler on the side
- Quiet operation (enclosed vacuum generator)
- Several mounting hole options for tooling
- T-Slot mountable
- Control via foot pedal or robot
- Open source tooling design platform
- Panel dial to set speed from 100-2000 RPM for different materials
Razor Sharp Flow Thru™ Core-Capturing Drills
- Over 2 dozen sizes of drill bits from 0.0215”-0.086”
- Cores are cut, captured inside the drill bit, and evacuated to a filter
- Maintains a clean workstation
- Great for prototyping, development, and early production
Pilot / Production Ready
- Stainless steel and anodized aluminum fabricated parts great for lab or clean room
- No software to validate thus shortening/simplifying end user validation activities
Plug and Play
- Configurable for 120V or 240V
- Air pressure regulation built in
- Core collection included
