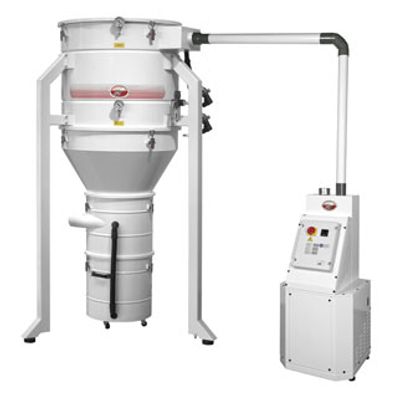

Cav - Model Eco75 Plus -Side-Channel Blower Units
The Eco75 Plus model is a unit for centralised dust extraction systems, equipped with a side channel blower designed for the effective extraction of dust generated during the dry sanding of primers and fillers. This system guarantees great reliability and high performance, being ideal for continuous use in industrial and craft environments.
- Model: ECO 75 Plus
- Power kW: 7.5
- Current A: 16.7
- Power supply V: 400
- Frequency Hz: 50
- Max airflow mc/h: 700
- Max vacuum mbar: 270
- Filtering surface sq.m: 14
- Noise dB(A): 75
- Weight kg: 298
Equipped with a high-efficiency cartridge filter system, the Eco75 Plus features automatic cleaning via a timed pneumatic rotary nozzle that ensures consistent filter performance and reduces the need for manual intervention. The collection of sucked dust is simple and hygienic: the dust is conveyed into an easily removable nylon bag, which facilitates emptying and disposal operations. The system is also equipped with real-time control instrumentation to monitor the efficiency of the filter cartridge, thus optimising operation and safety.
The Eco75 Plus is suitable for sectors that require precise and continuous extraction of fine dust, such as the automotive, nautical, wood industry, carbon fibre and fibreglass ones, ensuring cleaner and safer working environments during surface treatment operations.
The unit is supplied fully assembled, ready for installation. To facilitate transport or installation in tight spaces, it can be disassembled into the two main modules, the extraction unit and filter module.
