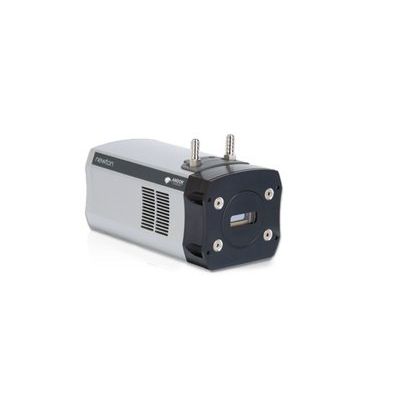

Newton - Model 940 -CCD and EMCCD Cameras
This high-end USB2.0 Newton CCD series brings together Andor’s ultra fast, lownoise electronics platform and market-leading deep thermo-electric cooling to -100°C, complemented by Andor’s Ultravac™ technology with its un-matched reliability track record in the scientific and industrial community.Broadband detection rates of up to 1,600 spectra per second are enabled with intelligent Crop Mode operation. The Newton CCD is an ideal tool for ultrafast UV, VIS or NIR spectroscopy (or all the above with the Dual AR-coating BEX2-DD technology!), such as 2D chemical mapping, online process monitoring or non-invasive medical diagnosis.The Newton 940 series offers 13.5 x 13.5 μm pixels for the highest UV to VIS resolution spectroscopy, while the 920 series and its 26 x 26 μm offers the highest dynamic range for UV to NIR applications. Both > 6.6 mm high sensors are ideally suited for multi-track spectroscopy or hyper-spectral imaging.
The Newton 940 spectroscopic CCD camera series utilizes a 1024 x 255 or 2048 x 512 array of 26 μm or 13.5 μm pixels, with thermoelectric cooling down to -100°C, resulting in negligible dark current and provides unrivalled performance for spectroscopic applications.
- Multi-Megahertz Readout
- TE cooling to -100°C
- UltraVac™
- Down to 13.5 x 13.5 μm pixel size
- Crop Mode Operation
- Peak OE up to 95%
- Fringe suppression technology as standard
- Extended range dual-AR option
- TE cooling to -100`C
- UtraVac`
- Multi-Megahertz Readout
- Crop Mode Operation
- Single UV-grade fused silica window
- USB 2.0 Connection
- Down to 135 x 135 pm pixels
- Software -se lectable pre-amplifier gain
- USB 2 0 connection
- Solis software for Spectroscopy
- Software Development Kit (SDK)
- Visible-optimized BV/BVF. infrared-optimized BR-DD` and broadband UV-NIR BEXz-DD" model
- Fringing greatly reduced (Deep-Depletion) or minimized (Back-Thinned BVF)
- Superior UV-NIR broadband OE
- Critical for elimination of dark current detection limit - no inconvenience associated with LNa
- Critical for sustained vacuum integrity and to maintain unequalled cooling and OE performance, year-after-year
- High repetition rates achievable with low noise electronics
- Up to 1.600 spectra per second rates
- Best UV-NIR throughput performance, specific AR coating and wedge options available
- Universal plug-and-play capability, ideal for laptop operation Seamless operation alongside USB-based Shamrock spectrograph family
- Optimized pixel format for high resolution spectroscopy
- Choice of best SNR performance of dynamic range at the touch of a button
- Ideal for laptop operation, seamless operation alongside USB-based Shamrock spectrograph family
- Comprehensive, user-friendly interface for simultaneous detector & spectrograph control
- Ease of control integration into complex setups: Matlab. Labview. Visual Basic or C/C"
