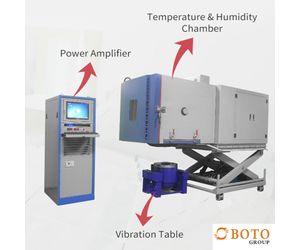

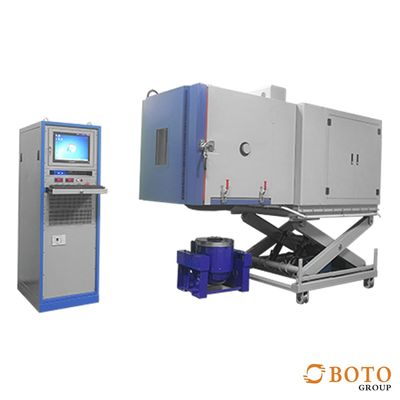

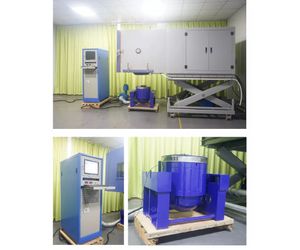

BOTO - Model BT-HUD-E809 -CE certification electronic environmental vibration comprehensive test chamber

Function
Temperature Humidity Vibration Test Chamber adopts test for aerospace products, automotive, electrical appliances and instruments, materials, coating and other parts under temperature & humidity and vibration environment condition. It’s widely used to do environmental endurance test,reliability growth test, reliability qualification test, product reliability acceptance test, routine test, environment stress screening test and so on.

Climate Chamber
Internal chamber dimension (W*D*H): 1000*1000*1000mm
External chamber dimension(W*D*H): 1200*3000*3800mm approx.
Temperature range: -40 ℃~ 150℃
Temperature uniformity: 2℃
Cooling speed(temp. Range: 85C~-40C): 5℃/min in average; without loading
Heating speed(temp. Range: -40C~85C): 5℃/min in average; without loading
Humidity range: 10~98%RH
Humidity fluctuation: ±3%RH
Internal chamber material: SUS#304 stainless steel, mirror finished
External chamber material: Stainless steel with paint spray
Cooling method: Water-cooled

Controller
Programmable control temperature and humidity
Can set different parameter for cyclic test

Insulation material: 50mm high density rigid Polyurethane foam

Heater: Explosion-proof type SUS#304 stainless steel fins radiator pipe
heater

Compressor: German Bock compressor
Refrigerant: Environmental friendly refrigerant R449A/R23
Temperature sensor: PT-100 dry and wet bulb sensor
Observation window: Tempered glass
Testing hole: 2 units with diameter 100mm, for cable routing
Sample tray: SUS#304 stainless steel, 2pcs

Safety protection device:

Protection for leakage Over-temperature
Compressor over-voltage and overload
Heater short circuit

Vibration Shaker

Max. Sine Force: 3200Kg.f peak
Max. Random Force: 3200Kg.f r.ms
Max. Shock Force: 6400Kg.f peak
Frequency Range: 2~3000Hz
Displacement (p-p): 51 mm
Max. Velocity: 2m/s
Max. Table Acceleration: 100g (without loading)
Armature Diameter: 335mm
Effective Armature Mass: 30kg
HE/ST screw dimension: 17×M10
Max. Load Capacity: 300kg
Magnetic Leakage: <10gauss
Axial Vibration Isolation Frequency: <2.5Hz
Power: Three-phase, 380V, 50Hz
Machine dimension: 845mm*790mm*840mm; without expander table

Vibration System

Controller Hardware
No of input channels: 02 analogue channels ADC: 24-bit Resolution
No of output channels: 01 DAC: 24-bit Resolution
USB 2.0 communication port

Controller Software Modules
Random Vibration (1-5000Hz), Sweep Sine Vibration (1-5000Hz), Classical Shock,
Resonance Search, Track and Dwell and Self Calibration

Other accessory
Test Computer: LENOVO M4500
Printer: HP 1020plus

Customer Responsibilities
Installing all utilities where required, including connecting utilities to the equipment
Installation/rigging of equipment
Completing any necessary building alterations including roof penetrations
Customers responsible for any permits required by -
local/state government

Sample tray
SUS#304 stainless steel, 2pcs

Safety protection device
Protection for leakage Over-temperature
Compressor over-voltage and overload
Heater short circuit
