CEIA - Model SH2C/SLE -Dual-Color Compact Pyrometer for Measurement of Metallic Surfaces Between 300°C and 2200°C
Along with the CEIA optical temperature sensors (SH/SLE series), the CEIA Controllers allow the implementation of efficient induction soldering systems and achievement of completely repeatable, economical heating processes and finished products: Master Controller v3 (Integrated Controller of Heating and Soldering Cycles); Power Controller v3 (Integrated Controller of Heating Cycles); Net Master Controller (Power Cube® Generators Network Controller)
Most popular related searches
optical temperature sensor
temperature sensor
temperature monitoring
electrical safety
pyrometer measurement
environmental monitoring
optical sensor
environmental parameter
pyrometer
digital temperature controller
- Temperature Range: Dual-color mode: 600 ÷ 2200 °C; Single-color mode: 300 ÷ 2200 °C
- High Accuracy
- High-Speed
- Compact design

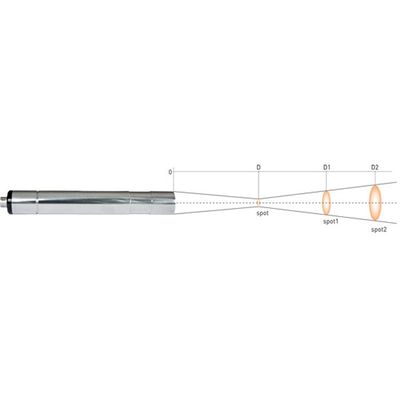

- Available with different focus distance and aiming spot size
- LED aiming light
- Supplied with Calibration Report traceable to certified International Standards
- AISI 304 Stainless Steel Construction
- Temperature range ; 300...2200 °C (Single-color mode); 600...2200 °C (Dual-color mode)
- Temperature resolution ; 0.1 °C (up to 999.9 °C) 1 °C (above 1000 °C)
- Emissivity range : 0.1-1.0 (Single-color mode); N/A (Dual-color mode)
- Response time ; 100 uS Time Constant
- Measurement SpotAiming ; High Definition, 620 nm wavelength led beam
- Internal digital controls ; Offset and Range Calibration Parameters
- Environmental Temperature Measurement and Correction
- Automatic Gain Range Selection
- Compatible controllers ; CEIA Power Controller v3, CEIA Master Controller v3, CEIA Net Master Controller
- Power Supply ; +/-15 V - +10/-5 mA, directly supplied by CEIA Controllers
- Connection cable ; 4.8 mm (diameter) - 1.5...4 m (length)
- Housing ; AISI 304 Stainless Steel
- Weight ; 100 g
- Housing Protection ; IP65
- Operating Temperature ; 0°C...+65°C
- Storage Temperature ; -25...+70°C
- Conformity ; Complies with international standards currently applicable for Electrical Safety and Electromagnetic Compatibility (EMC)
