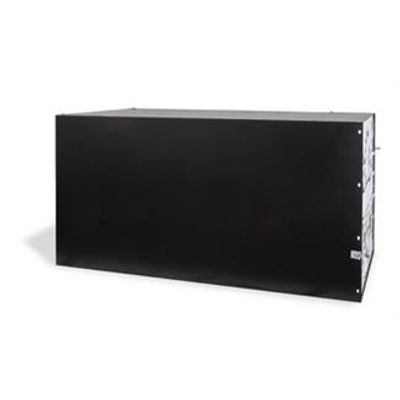

Air Impurities - Model CM-3500 -Ceiling Mount Ambient Air Cleaner
Our line of ceiling mounted ambient air cleaners are designed for industrial ambient air cleaning of dust, smoke and other airborne contaminants present in shops, factories, and labs. The CM-3500 is ideal where direct capture at the source of the pollutant creating operation is not practical.The CM-3500 operates by collecting the contaminants into the rear of the unit, which then passes through a multi-stage filter package. The clean air is then exhausted back into your workspace through a directional grill.
When source capture is not practical due to the size of an area, or poor access to points of generation, we recommend using an “Area” or “Ambient” air cleaning system.
Single units or Multiple units are suspended in a workspace to achieve a continuous air pattern and filter the air 6 to 8 times per hour.
- Up to 3500 CFM
- 16 Gauge Steel Construction
- Cabinet is Sealed for minimum air bypass
- Filter Change Light
- Special Filtration for Specific Applications
- Easy Access to Filters and other Components
- Heavy-Duty, Balanced Motor/Blower Combination
- 4-Way Adjustable Grill
- Cabinet: 16 Gauge Welded Galvanealed Steel
- Finish: Industrial Grade Textured Baked Enamel inside and out
- Cabinet Dimensions: 26”H X 26” W X 69” L
- Blower/Motor Assembly: 1.5 HP, 120 Volt, 60 HZ, Thermally Protected Ball Bearing Motor
- Rated Fan Performance: 3500 CFM Single Speed
- Standard Weight: 268 LBS Actual; 300 LBS Shipping
- Noise Level: 76 DBA (Optional Silencer Available)
- Filters: 4” Pleated Pre-Filter; Merv 14 Bag Filter
- Adhesive Glue Fumes
- Brazing
- Bulk Packaging
- Chemical Fume Removal
- Cleaning with Solvents
- Grinding
- Laser Etching
- Laser Fumes
- Laser Marking
- Laser Printing
- Light Welding
- Plastic Heat Bending
- Polishing Applications
- Powder Weighing
- Robotic Welding
- Sanding Operations
- Small Grinding Operations
- Solvent Chemical & Miscellaneous Mixing
- Toxic Chemical Fumes
- Toxic Fumes
- Toxic Gases
- Toxic Particulate
- Toxic Powders
- Toxic Vapors
- Welding
- Wire Stripping
