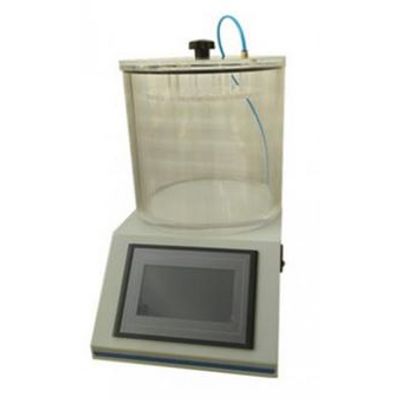

Cell-Instruments - Model LT-03 -Package and Container Seal Integrity Testing Machine

Package And Container Seal Integrity Testing Machine Technical Features
Package And Container Seal Integrity Testing Machine uses vacuum ejector to generate stable vacuum environment. The state-of-the-art human-computer interface and PLC control unit on the leak tester make the parameter setting and test operation direct and easy. By saving different groups of parameters, users are free from the troubles of setting parameters each time before use. At the same time, different testing results and total test numbers can be saved to avoid any human errors.

1. Leak test process all automatic
2. Touching screen operation
3. Digital vacuum degree and test time input
4. Parameters and test data automatic saving
5. Automatic vacuum maintenance and air back-flushing
6. Strong cast vaccum chamber
7. Different chamber sizes available
8. No vacuum pump required
9. Easy operation and maintenance

• Vacuum     0~-90KPa/0~-13PSI
• Vacuum chamber size Φ270 mm x 210 mm (H) (Customization available)
• Gas source Compressed air
• Gas Pressure     0.7MPa/101.5PSI
