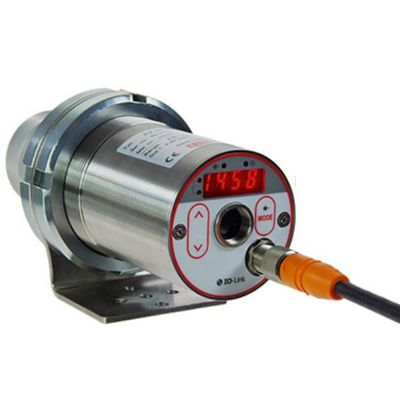

CellaTemp - Model PX 10 -Stationary Pyrometer
The CellaTemp® PX 10 is a digital pyrometer for measuring temperatures from 0 to 1,000 °C. Due to the very large measuring span, it can be used very universally for a variety of applications, primarily on non-metallic measuring objects. A through-the-lens sighting or a laser pilot light is available for easy and precise sighting of the measuring object. The LED display on the back can be read from a great distance. In normal operation, the current measuring temperature is displayed. If current parameters are changed via the rear buttons, the changed settings are shown on the display.
Most popular related searches
pyrometer
digital pyrometer
metal thickness monitoring
temperature monitoring
pyrometer measurement
digital temperature monitoring
pyrometer instrument
objective lens
- Measuring range 0 to 1,000 °C
- modern IO-Link interface
- focusable interchangeable lenses for exact adjustment of the measuring distance
- broadband anti-reflective precision lenses
- LED display can be read from a great distance
- all parameters and functions adjustable via keyboard
- test current output for the diagnostic function
- 1 analogue output and 2 switching outputs
- source freely configurable
- ATD function for automatic temperature detection
- Version: CellaTemp PX 10 AF 1 /D
- Measuring range: 0 - 1000 °C
- Focal distance: 0,3 m - ∞
- Shape of the measurement area: round
- Distance ratio: 50 : 1
- Objective: PZ 10.01
- Measuring principle: one-colour
- Sighting option: Through-the-lens-sighting
