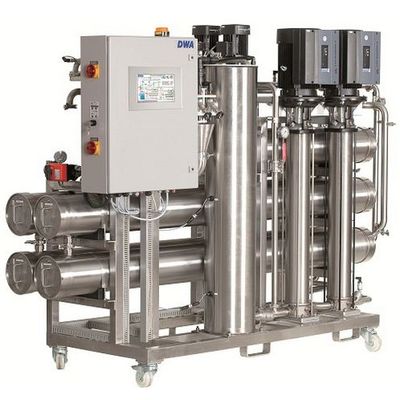

nephRO - Model TP -Central Reverse Osmosis System
The nephRO TP is available in six variants covering the needs of all dialysis centres. The RO is available as redundant, twin-pass and single stage reverse osmosis system. The nephRO TP combines all features of the previous DWA reverse osmosis systems in one system. Furthermore it is suitable for big dialysis centres because of its outstanding permeate capacity up to 6,400 l/h. By the new software and the new coloured touchscreen the nephRO TP reveals new possibilities for data visualisation and networking.
Most popular related searches
reverse osmosis system
reverse osmosis
data visualization
water saving
temperature monitoring
conductivity monitoring
nephRO TP: 1.200 l/h – 4.700 l/h
nephRO TPR:2.800 l/h – 6.400 l/h (Eco-Mode)
1.400 l/h – 4.700 l/h (Fully redundant)
nephRO TPS:1.400 l/h – 4.700 l/h
- Water saving technology through permanent temperature-measurement and conductivity
- Retention of organic and inorganic substances: >99%
- Recovery rate: up to 85%
- Conformity declared with directive 93/42/EEC
- Available in six different versions
- Optionally available with integrated heating elements for heat-disinfection of the Reverse Osmosis System
- The software is able to illustrate flow diagrams and performance data on the coloured touchscreen
- Various interfaces for networking (e.g. sending alarms to cell phone or smartphone, password-protected access via internet browser)
- Emergency operation in case of a breakdown of the control board
- Dimensions: 2,600 x 1,950 x 790 mm (W x H x D)
- Weight (max.): 1,400kg (nephRO TP and nephRO TPR)
- 1,100 kg (nephRO TPS)
