Veeraja - Centralized Filtration System

A Centralized Filtration System is the most effective and efficient ideology in Coolant Filtration System and Cutting Oil Filtration System.

A Centralized Filtration System has huge benefits over a Individual Filtration System.

Working of CFS

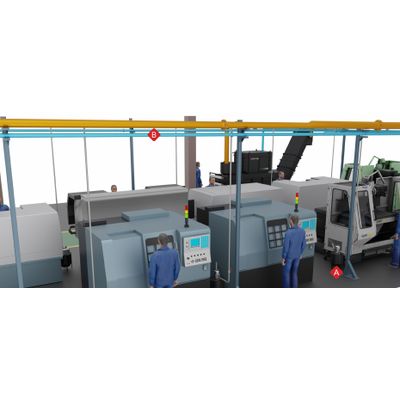

In a CFS the dirty fluid from the machines has to transfer to the system. The image shown is of CFS for Cast Iron machining with underground gutter.

Underground Gutter

• U shaped gutters are placed along the machine below the shop floor level. Dirty fluid from the machine drops in these gutters. These gutters are inclined to give a gradient towards the centralized filtration system. Inclination is calculated based on the dirt coming from the machine.
• A. Grids of civil trenches are made inside the shop floor.
• B. Metallic U shaped gutter are placed inside these trenches.
• C. Dirty fluid from machines drops into these gutters instead of those messy tanks. These gutters placed in such a way that the fluid along with the chips flows towards the CFS.
• D. Enough slope is provided to the gutters to facilitate the flow of coolant along with the chips. Both these metallic gutter and the civil trenches have covers that means all the dirty fluid is below the shop floor away from eye contact but can be accessed easily.
• E. ThisThis grid of gutter joins into a main gutter which in turn connects to the CFS.
• F. The CFS is placed in a pit where the filtration system, clean tanks and pumps are placed. This is where it is filtered to the required quality.
• G. The pumps supply the fluid through pipes which are laid next to the gutters inside the trenches.
