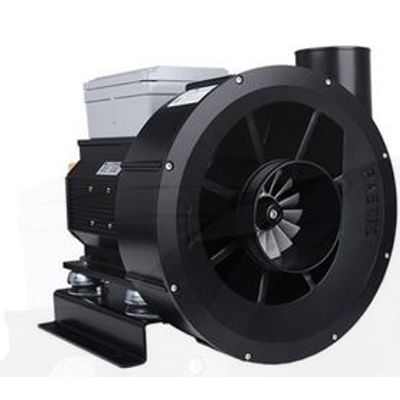

Raetts - Model 300 18.5KW -Centrifugal Blower Explorer
RAETTS Explorer Series Suoer Blowers offer unmatched efficiency. It is made of advanced aerodynamic technology and designed by theory of three-dimensional flowing. We have redesigned the impeller and flow channel to save more than 30% of power compared with other high-pressure centrifugal blowers. One set of RAETTS explorer series super air blower can replace three sets turbo blowers. At the same time, it has the following characteristics.
RAETTS is one of the world’s leading industrial blower machine factories and suppliers. The products are widely applied for food processing and packaging process drying, bottling and canning drying, beverage & mineral water & liquor & beer production line drying, automobile spare parts& hardware & Die-cast parts cleaning line drying, pharmaceutical & medical & electronics production process drying, ultrasonic cleaning system, PCB circuit board & LCD dehydration and drying system, dust blowing off, textile drying and blow off, wire and cable drying and blowing off and other related industries.
Higher Efficiency (Up to 85%)
Under the same energy consumption and pressure, the air volume of the Explorer Super air Blower is more than 30% higher than that of the similar energy-saving high-pressure centrifugal blower.
Lower Energy Consumption
The pressure and airflow generated by the EXPLORER -100 7.5KW can replace the RAETTS-100 11KW, which means that the customer can save 25,000 kilowatts per year on the basis of the original energy saving.
Longer Service Life
Drive directly with a high-speed motor inverter, no other spare parts such as belts, tensioner system, etc., with higher stability and longer service life.
Wider Applicability
The size and weight are only half of the belt drive series high-speed centrifugal blower, which is more convenient to install and transport. You can choose European standard IE3 or IE4 blushless magnet high-efficiency motor. The special model can bear temperatures of 200 0C and the inhalation steam can still operate smoothly.
Unparalleled Control System
The Explorer Series Super air Blowers are equipped with a control system independently developed by RAETTS, which can be used to monitor the speed, frequency, voltage, current and temperature of the blower operation through the mobile APP. In addition, the APP can also achieve fault alarm and remote switch, and the 24-hour running state of air blower is under control.
- Technical Standard RAETTS Explorer
- Power: 3.0KW~22KW
- Air Flow: 450-2800m3/h
- Pressure: 380mbar(38.0KPa)
- Vacuum: 350mbar(35.0KPa)
- Weight: 42~56Kg
- Ambient Temperature: -120℃-40℃
- Inlet Temperature: <150℃
- Design Form Single Pump
