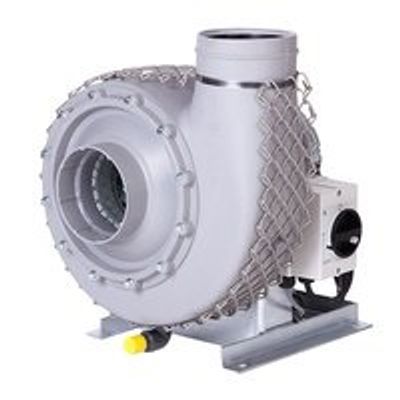

HLU - Model HF R 15/17 -Centrifugal Fans
Can be used in all applications with medium air volumes. Ideal for extraction of digestors and chemical cabinets in laboratories. With optional accessories also suitable for more demanding industrial applications, such as the Extraction of baths in the electroplating industry. Optionally suitable for installation and extraction from ATEX Zone 2 and 1.
Most popular related searches
ATEX zone 1
high-pressure radial fan
centrifugal fan
electrical conductivity
pipe flange
radial plastic fan
centrifuge
flanged pipe
- volume flow of 100 – 15,000 m³/h
- at a maximum pressure difference of 5,000 Pa
- available in 12 nominal sizes from 125 – 500 mm suction diameter
- volume flow ;100 – 15,000 m³/h
- maximum pressure difference ;5,000 Pa
- efficiency ;up to 81%
- nominal diameters ;12 nominal diameters from 125 – 500 mm
- operating temperature ;0 – 60 °C
- housing material ;UV-resistant PE
- impeller material ;PPs, GFK, CFK
- drive ;direct or belt drive
- Atex ;optionally suitable for installation and extraction from ATEX Zone 2 or ATEX Zone 1 in electrically conductive version
- connection variants ;pipe or flange connection
- corrosion-resistant
- energy efficient
- weatherproof
- compact design
- finely graduated sizes
- quick availability of standard variants
- suction and pressure sides with the same diameters
- extensive range of accessories
- engine outside the airflow
- Use of different motors (Ex-motors) possible
