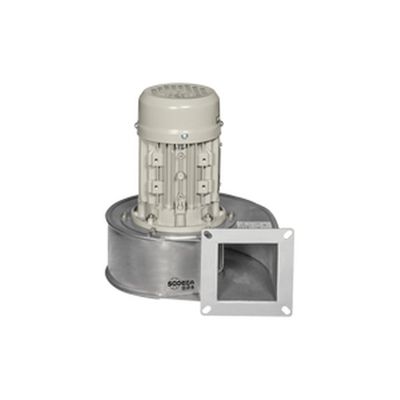

Sodeca - Centrifugal Fans for Ovens
FromSodeca, S.L.U.
Centrifugal fans built in INOX, specially designed for the extraction of hot air max. 80 ºC and water vapors in extraction hoods, with horizontal air outlet. Specially designed for bakery and pastry ovens and surface treatment ovens
Most popular related searches
Fan:
- Stainless steel sheet casing.
- Forward curved impeller in stainless steel sheet.
- Directly coupled motor with B-5 flange.
Motor:
- Motors with IE3 efficiency for powers equal to or greater than 0.75kW, except single-phase, 2-speed and 8-pole.
- P55 protection.
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
- Maximum temperature of air to be carried: -25 ºC +80 ºC.
Finishing:
- Made of stainless steel sheet
On request:
- Special windings for different voltages.
- Painted steel fan.
