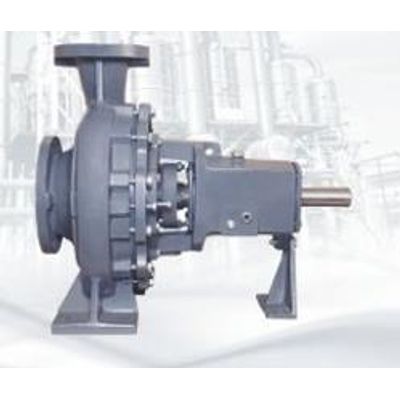

JEC Woodland - Model PCF Series -Centrifugal Process Axial Flow Pump

SHARE

The JEC PCF centrifugal pump is suitable for handling water. Condensate, oil some aggressive chemical products and other liquids mainly used in the following application:

Most popular related searches
end suction centrifugal pump
centrifugal pumping
centrifugal pump
chemical process pump
axial flow pump
process pump
centrifuge
air conditioning
boiler feed
fire fighting

DESIGN

Horizontal, single-stage, end suction centrifugal pump dimensionally built to ISO 2858 and technical specification IS-ISO 5199. The back pull out design allows for easy maintenance and repair as the rotating element may be removed without disturbing the pipework. The pump has wear rings as standard and lifting eye on bearing bracket.

DESIGNATION
  • Model / type - PCF
  • Discharge / diameter (mm) - 32
  • Nominal impeller diameter (mm) - 125
  • Water supply
  • Irrigation
  • Air conditioning
  • Fire fighting
  • Drainage
  • Heating
  • Chemical and petrochemical
  • Sugar and alcohol industry
  • Boiler feed
  • Auxiliary circuits in refineries
  • Auxiliary circuits in the industry (Paper Food Synthetic Fibers Others.)
DRIVE
The pump is only recommended for direct via a flexible spacer coupling. Spacer couplings enable utilization of the back pull out feature. Where belt drives are necessary a separate jack (intermediate) shaft with bearing to carry the belt loads maybe
BASE PLATE
Base plates for electric drives are available in a variety of styles. Standard: fixed and grouted directly to the foundation Anti-vibration: rigid base plate on rubber mounts.

Horizontal single-stage, end suction with vertical discharge. The “back pull out” design allows for the maintenance of the pump without disturbing the pipework connected to the casing, or the pump alignment.The pump is built to the dimensional and technical requirements of ISO 2858 and ISO 5199. Flanges are in accordance with ANSI B16.5, 150#SORF.

CASING
Self-venting horizontal volute casing with horizontal end suction and vertical discharge.
FLANGES
Drilling as per Ndl6 DIN 2533 (CIRF) DIN 2543 (Steel FF), Optional: Available on request.
SHAFT
The shaft is of the dry type, with a protective sleeve to prevent contact with the pumped liquid.
SHAFT SEAL
The shaft sealing is carried out by means of gland packing or by mechanical seal.
