Packo - Model CRP+ -Centrifugal Pump

SHARE

The pumps of the CRP+ series are perfectly cleanable EHEDG and 3A certified air handling pumps and are mainly used to pump a mixture of liquid and air. Constructed in thick cold rolled plate, 100% non-porous and extremely smooth. The pumps have open investment cast impellers, constructed in 316L or duplex materials. Thanks to its crevice-free design and electropolishing as a final surface treatment, the CRP+ pump series are perfectly cleanable, resulting in a reliable component for your production process.

Most popular related searches
centrifugal pumping
centrifugal pump
liquid ring pump
centrifuge
air separator
clean construction
air separation
construction noise
air pump
well pumping

3A certified airhandling pump (CIP return)

  • Max. flow: 105 m³/h
  • Max. head: 75 m
  • max. product viscosity: 10 cP
  • max. motor power: 22 kW

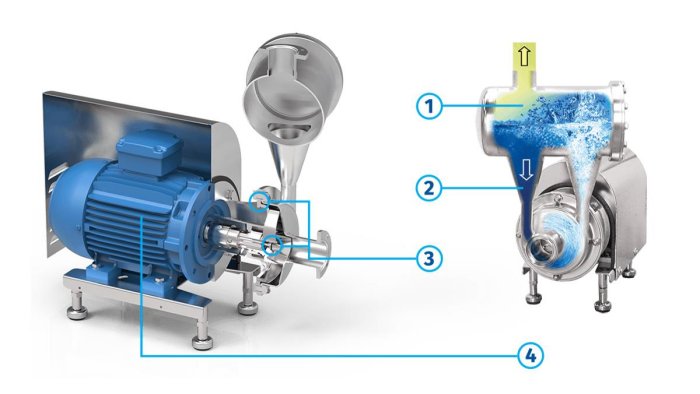

  1. Electropolished, easy to clean construction, no bacteria traps and no small clearances in order to clean the area around the O-ring
  2. Unique air handling design with cleanable air separator
  3. By-pass to casing taking care about air evacuation
  4. Monobloc execution with std. IEC motors
  • Higher pump efficiency compared with a classic liquid ring pump
  • Low NPSH values: less risk on cavitation
  • Electropolished: perfectly cleanable
  • Easy construction and easy maintenance: less downtime
  • Standard components
  • Easy to install
  • 1 mechanical seal diameter for the entire range
  • Robust construction
  • Limited noise level

Thanks to its unique air handling design based on a standard centrifugal pump, the CRP series are particularly suitable as a CIP return pump, as well as for unloading applications.

They are used in the most demanding hygienic applications in almost all industries such as dairies, breweries, beverage industry, distilleries, etc.

In pharmaceutical and biotech industry they are mainly used for CIP return applications.

Performance:

  • max. flow rate: 80 m³/h
  • max. differential head: 75 m
  • max. inlet pressure: 13 bar
  • max. liquid viscosity: 10 cP
  • max. temperature: 140°C
  • impeller type: open
  • max. free passage: 22 mm
  • max. motor power: 45 kW
  • max. speed: 3000/3600 rpm
  • available frequency: 50/60 Hz
