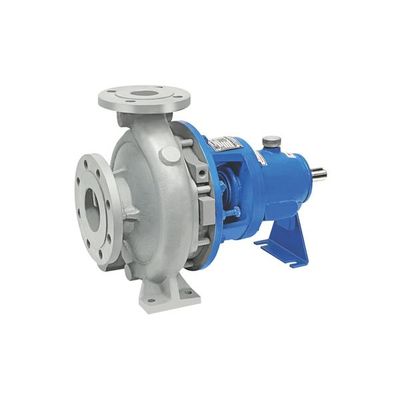

Ambica - Centrifugal Pump
Centrifugal pumps is also known by the names dynamic pressure pump or hydrodynamic pump. As the name suggests, it works on the core principle of centrifugal force and have gained popularity as they are easy to install and also quick to fix.
Ambica Machine Tools is an industry-leading
centrifugal pump manufacturer and supplier in Indiawho is known for manufacturing, supplying, and trading superior-grade centrifugal pump.
We harness state-of-art machinery and most advanced technology to meet the different needs of our discerning clientele which has given us a reputation of leading centrifugal pump manufacturer in the market. Premium-grade centrifugal pumps by Ambica Machine tools are used in rubber industries, chemical industries, power stations, laminates industries, textile industries, water desalination plants, fertilizer industry etc.
- Modular construction, high interchangeability, fast delivery.
- Versatile shaft sealing arrangement, gland packing as a standard arrangement and option to use mechanical seal.
- Process type design results in minimum downtime.
- Back pull-out design enabling easier removal for inspection and maintenance.
- Closed impeller ensures high efficiency for a long period operation.
- Pump comes in 3 bearing design resulting good continuous process with high productivity.
- Bigger shaft and bearing size enabling sturdy design.
For handing aggressive organic & inorganic fluids in the chemical & petrochemical industries,centrifugal pumpsare also used at refinery off – sites, paper & pulp industries, food industries, sugar industries, dea water desalination plants, absorption plants in environmental engineering, power stations, laminates industries, textiles industries, rubber industries, handing of hydrocarbons, d.m.water, salt power stations and in industries such as fertilizer and other process industries etc.
The space necessary to withdraw the pump rotating element is obtained by removing the coupling spacer, after dismantling of the casing cover, support foot, cooling water connections, heating connections and sealing liquid (if any) the complete pump rotating elements is withdraw from the pump casing, the pump casing is left in the pipe work. The motor remains fixed to the base plate, the pump rotating element can easily be dismantled into its components, after re-assembly no time consuming re alignment is necessary.
- Capacity Up To: 850 M3/Hr.
- HEAD – Up To: 120 Mtr.
- Pump Sizes – DN: 25 mm To 200 mm
- Speed – N: 1450/2900 rpm at 50 Hz & 1750/3500 rpm at 60 Hz
- Temperature: 350’C
- GREY CAST IRON: CARBON STEEL
- ALLOY STEEL: CF8
- CF8M: CF3
- CF3M(SS-316I): ALLOY 20
- CD4MCU: HASTELLOY-B/C
- GUN METAL: BRONZE
The product details mentioned above briefly outlines our current standard of our pump range. Information mentioned above is subject to change due to constant developments and performance improvement of all our products. The color of the product shown above is not the identity of the product.
