Pentair Hypro - Model 9307C Series -Centrifugal Pumps
FromHypro EU Limited

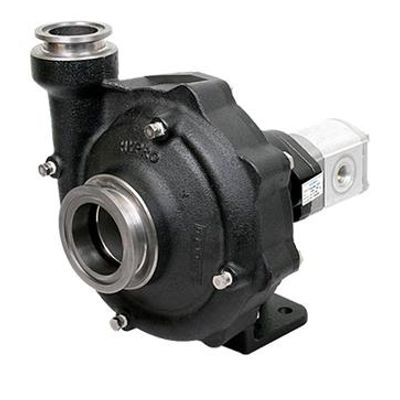

The Hypro 9307C series hydraulically-driven, cast iron centrifugal pump achieves a max of 370 gpm (1400 lpm) and a max of 135 psi (9.3 bar). The Hypro “close-coupled” design reduces the mounting space required, eliminating long shafts and couplers between the pump and motor.
Most popular related searches
- Hydraulic motor drive (for open center, closed center and load-sensing systems)
- 300 x 220 universal flange available (U)
- Max. fluid temperature: 140°F/60°C
- Motor: external gear
- Hydraulic ports: -10 SAE inlet and -12 SAE outlet
- Max. motor psi: 3000 (bar: 207)
- Pump seals: Life Guard silicon carbide standard
- Weight: 86 lbs./39 kg
- Pump Type: Centrifugal
- Drive Type: Hydraulic
- Seal Material: Life Guard Silicon Carbide
- Housing Material: Cast Iron
- PORT SIZES: 3" x 2" NPT
- Hydraulic Selection System: Open/Closed
