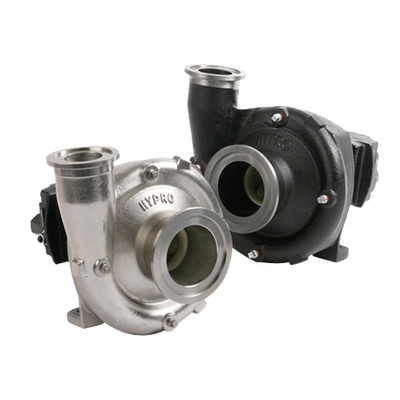

Pentair Hypro - Model 9306C & 9306S Series -Centrifugal Pumps

The Hypro 9306 C + S Series hydraulically-driven, cast iron and stainless steel centrifugal pump achieves a max of 214 gpm (810 lpm) and max of 140 psi (9.6 bar). Hydraulic motor drive (for open center, closed center and  load-sensing systems). Max. fluid temperature: 140°F/60°C. Available in cast iron and 316 stainless steel for extended pump life. Impeller: Nylon (cast iron models); polypropylene (stainless steel models); (GTX available). Motor: internal gear gerotor. Hydraulic ports: 1⁄2" NPT inlet, 3⁄4" NPT outlet. Max. motor psi: 3000 (bar: 207). Pump seals: Cast Iron models – Viton® /ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models –  Life Guard silicon carbide standard. Hydraulic motor seal: double-lip Teflon®. Weight: 33 lbs./15 kg.
