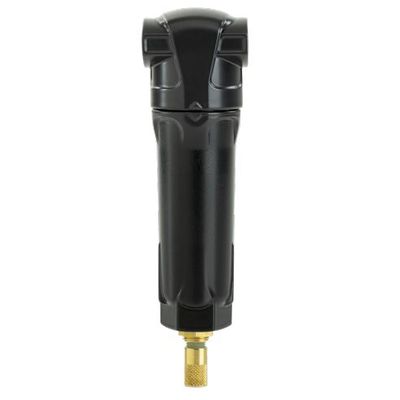

Nano - Model GF 0006 WS -Centrifugal Water Separators
The nano F1.1 centrifugal water separators are designed to remove 99% of bulk liquid water from your compressed air or gas stream. This simple yet highly efficient design eliminates liquid contaminants enhancing the reliability of your compressed air or gas system and eliminating costly downtime.
Most popular related searches
compressed air
compressed air filtration
ASME pressure vessel
centrifugal separator
centrifuge
corrosion protection
air filtration
compressed air system
contaminants removal
compressed air filter
- Designed in accordance with ASME pressure vessel standards.
- Carries CRN (Canadian Registration Numbers) for approved use in every province of Canada.
- “Dead Stop” bowl feature provides full closure without over tightening.
- 10 year housing warranty
- Manufactured in an ISO 9001 approved facility and tested in accordance with ISO 12500-4.
- Comprehensive range of mounting accessories.
- Housing manufactored from die cast aluminum and polyester powder coated for optimum corrosion protection for the most demanding applications.
- Vortex arrester ensures the separated liquid cannot re-enter the air gas stream.
Dimensions and Weight
- A (ins): 1.97
- B (ins) : 0.67
- C (ins) : 6.18
- D (ins) : 1.10
- E (ins) : 2.36
- Weight (lbs): 0.6
