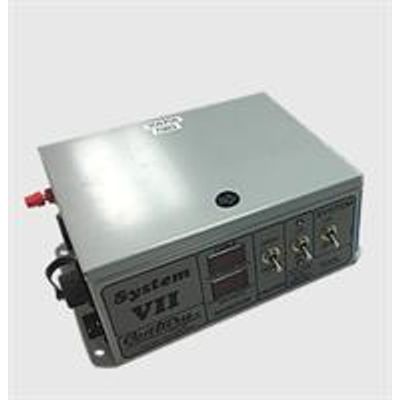

Century Geophysical - Model VII -Surface Unit

Includes: System VI  Box, Collect and Display Software License. Dimensions: 6"H x 10"W x 10"D (15.2 x 25.4 x 25.4 cm). Shipping Weight: 8 Lbs. (3.6 kg).Input Voltage: 115/120 or 230/240 VAC, 150 Watts. DC Tool Power: 250 Milliamps, Max 180 Volts. Cable Connector: 15 Pin Twist Lock. Operating Systems: Win98, 2000, XP, Vista, and 7,8,10. Logging Cable: Standard Four Conductor Wireline. Weight Indicator: Provision for Weight Sensor input. Depth Indicator: Provision for Depth Encoder input, 5 VDC.
