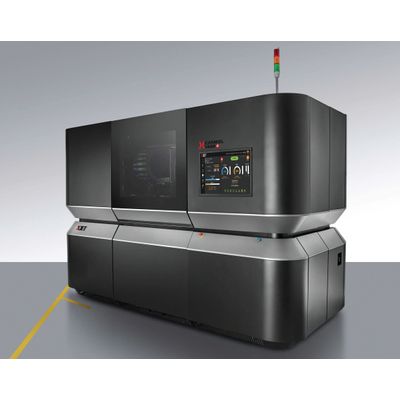

XJet Carmel - Model 1400C -Ceramic AM System
The XJet Carmel 1400C is the industry’s ultimate ceramic AM system for applications requiring high productivity, superior quality and geometric complexity. Already installed and operating at customer sites, the Carmel 1400C is empowering manufacturers to produce parts of geometric design never before possible.
Our state-of-the-art Carmel 1400C system is highly suitable for a wide range of creative ceramic AM applications in diverse industries. Featuring a 1,400 cm² (217 in²) build tray – one of the industry’s largest – the Carmel 1400C enables the simultaneous production of multiple ceramic parts.
Our Carmel 1400C leverages XJet’s revolutionary NanoParticle Jetting™ (NPJ) technology. This patented inkjet technology enables the production of ceramic AM parts of the highest quality – featuring unprecedented levels of detailing, finish and accuracy – without compromising throughput or build time.
Build Tray: mm: 500 x 140 in: 19.7 x 5.5
Materials: Alumina; Zirconia
System Dimensions: cm: 310 w x 212 h x 185 d; in: 122.0 w x 83.5 h x 72.8 d
System Weight: kg: 3,000 (3.0 tons); lb: 6,614
Shipping Pallet Dimensions: cm: 330 w x 240 h x 200 d; in: 129.9 w x 94.5 h x 78.7 d
Shipping Pallet Weight: kg: 3,200 (3.2 tons); lb: 7,055
Air Pressure Required: 6 bar
Electrical Power Consumption: EU: 400 VAC; 3 Phases; 3 x 30 A; 50/60 Hz; US: 208 VAC; 3 Phases; 3 x 50 A; 60 Hz
Heat Dissipation: 3 kW (10,240 BTU/hr)
