Pall - Model Membralox IC -Ceramic Membranes

Membralox membranes are the key components of crossflow systems used in numerous food and beverage applications.

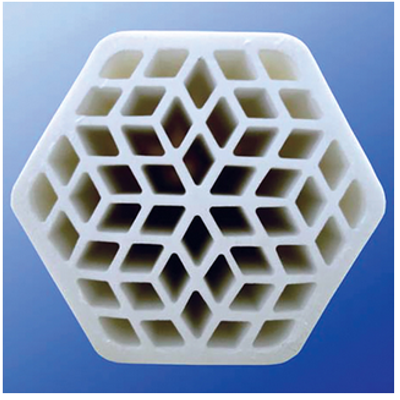

Membralox IC ceramic elements are asymmetric multi-channel membranes composed of a porous alumina support and filtering layers. Their innovative and highly compact design in unique 4 and 5.5 mm channel geometries provide superior filtration area per multichannel element - up to 570 m²/m³.

The increased capacity of the Membralox IC filtration modules, up to 45% more than standard module configurations, enables optimized system loop design, which results in more compact systems, with smaller footprint and reduced hardware costs. The smaller hold-up volume of the system loops also results in a significant reduction of the related water and chemical cleaning costs.

Pall Membralox IC membranes, 100% ceramic and 100% bubble point tested, feature the same exceptional performance, mechanical and chemical resistance and service life as the well-recognized Membralox product range.

HCS and SD modules are available in a smart 3-A sanitary design, which meets the requirements of 3-A Sanitary Standards #10-04, and industrial compact design enable flexible loop design, optimum cleanability and long reliable operating life.
