Savante - Cerberus Micro ROV Laser Profiler

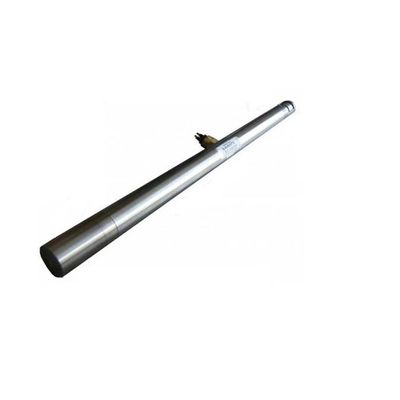

Available for rental from Savante Subsea - The Cerberus Inspection Class Subsea Laser Scanner. The Cerberus subsea laser profiler was specifically designed to perform high precision laser survey tasks using a micro-ROV or small AUV. It’s low profile (31mm diameter, 420mm length) presents an extremely small cross-section to currents, is ideally mounted as a suspended pay-load and enables laser profiling operations in enclosed spaces such as manifold and wellhead protection structures.
The green laser emitter and near-SIT performance photodetector are integrated into a single housing and optimised for a scanning range of 30cm to 3m range. A single bulkhead connector provides signals and power connectivity.
Cerberus achieves a scanning frequency of 25Hz; this enables up to 25,000 3D datapoints/sec with resolution and precision better than 1mm.Cerberus’ capabilities can be enhanced when operated in conjunction with our optical navigation markers; enabling dynamic 3D scanning operations in proximity to one or more magnetically-attached optically encoded target pads.
- Wavelength (nm): 450
- Power (mW): 60
- Fan angle (deg): 60 in water
- Depth rating (m): 0-6000
- Power: 0.3A @ 24VDC - zero warm up required
- Operating Temperature (C): -20 to 40
- 25Hz profile update rate (1280 points/profile).
- Range: 0.3m to 3.5m
