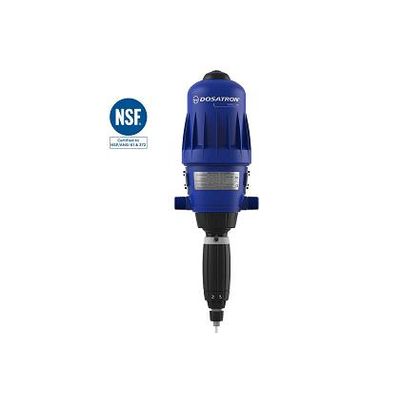

Dosatron - Model D3WL3000 NSF -Certified Dosing Pump for Drinking Water
The D3WL-NSF range of dispensers is certified NSF/ANSI/CAN 61: Drinking Water System Components - Health Effects NSF (American approval for all equipment in contact with water intended for human consumption). It meets the dosing requirements for flow rates from 10 to 3,000 l/h.
Most popular related searches
drinking water
drinking water system
drinking water treatment
dosing pump
water treatment
drinking water industry
water industry
It is characterized by:
- An optimized design
- A polypropylene pump casing
- Highly ergonomic dosage adjustment
- The availability of micro and macro dosages
- One injection at the exit
- AF seals adapted to alkaline products
- Injection range0,03 - 0,3 % [1:3000 - 1:333]
- Water flow range10 l/h - 3 m3/h
- Operating water pressure0,3 - 6 bar
- Concentrated additive injection0,003 - 9 l/h
- Stroke volume~ 0,53 l
- ConnectionsNPT-BSP 20x27 - 3/4"M
- Seals for alkaline additives
- (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
- External Injection
