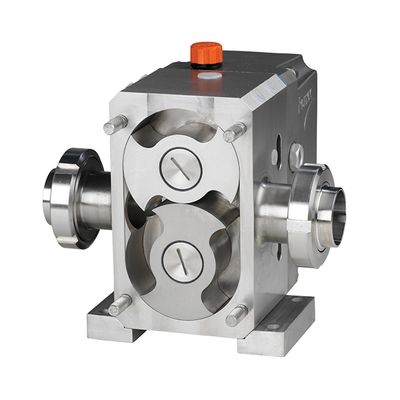

Tapflo Gulf - Model EHEDG -Certified Lobe Pump for Sanitary Applications
The EHEDG Lobe Pump is engineered as a versatile and sanitary pumping solution tailored to meet the stringent hygiene standards of the food, cosmetic, and pharmaceutical industries. Constructed from Cast Stainless Steel AISI 316L, this pump offers exceptional corrosion resistance. Its design includes 11 pump sizes, multiple sealing options, and various elastomer materials, which contribute to its adaptability in diverse applications. With a flow capacity of up to 110m³/hr and the ability to withstand discharge pressures of up to 15 Bar, this pump is well-suited for handling tasks in harsh industrial environments. Furthermore, it is ATEX certified, making it a safe choice for operations in hazardous locations. The EHEDG Lobe Pump presents a robust and efficient solution for ensuring the seamless processing of delicate and sensitive materials.
Our EHEDG Lobe Pump is a versatile sanitary solution designed for the Food, Cosmetic and Pharmaceutical industries. EHEDG-certified, this pump ensures optimal hygiene and increased corrosion resistance with its Cast Stainless Steel AISI 316L construction. With 11 pump sizes, various sealing options and elastomer materials, it stands out as one of the most versatile Lobe Pumps on the market today. Capacities up to 110m³/hr, discharge pressures up to 15 Bar and ATEX availability for hazardous environments make this pump suitable for a range of applications.
Typical applications for our EHEDG Lobe Pump:
- Dairy
- Bakery products
- Beverages
- Cosmetics
- Meat products
- Egg products
- Viscous products
- Starch products
- ATEX available
- Speed range up to 1500 rpm
- Fully EHEDG Compliant
- Wide Variety Interchangeable Sealing Options – Modular design
- Complete Front Pull-Out of Mechanical Seal & Lobes
- High-Efficiency B-Wing or Low Pulsation Quattro Lobe Designs available
- Flat Front Cover to ensure more efficient cleaning
- Can be mounted Horizontally or Vertically in pipework
- When mounted vertically the pump is self-draining
- Accurate flow control from 0.04 – 2.5 l/rev
- Discharge Pressures up to 15 Bar
- Variable fluid temperatures up to 140ºC
- CIP/SIP friendly – minimal dead spaces
- Suitable for Shear Sensitive Fluids
- Suitable for pumping fragile solids
- Wide variety of connection types
- Optional Heating & Cooling Jackets
- Optional Air or Spring Loaded Integral Safety Valves
- Materials : Cast Stainless Steel AISI 316L
- Max Capacity : 110m³/hr
- Max Pressure : 150m
- Self Priming : Yes
- Max Solids Passage : 60mm
- Max Temperature : 140ºC
- Viscosity : 1,000,000 cPs
